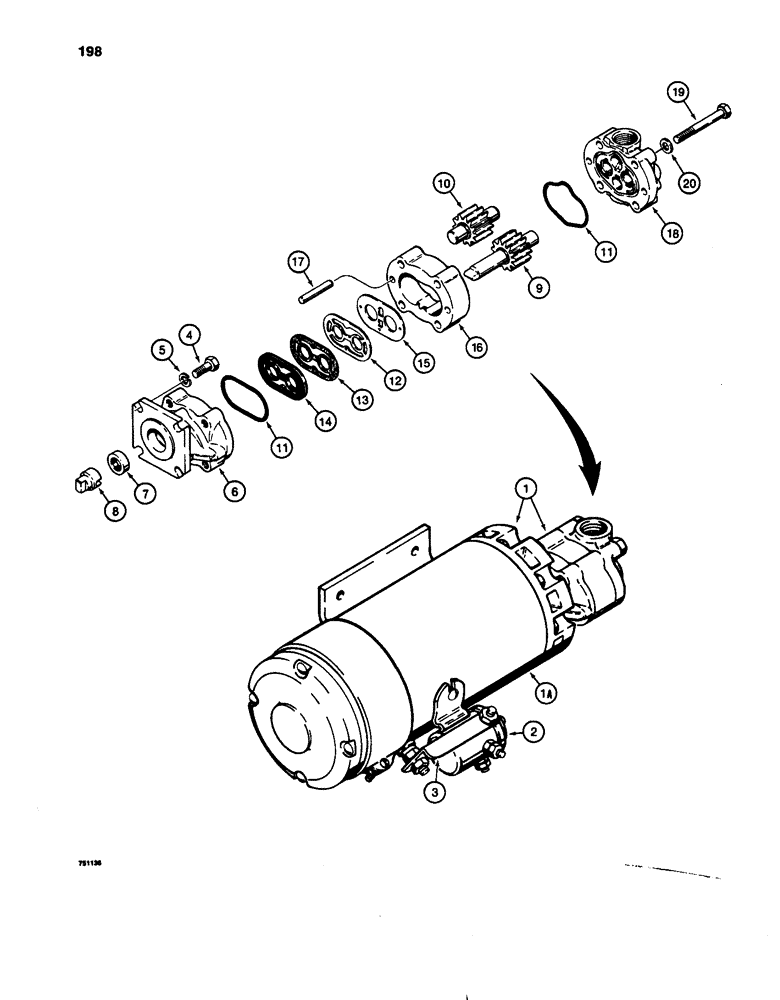

Запчасти Case W24C (198) - L70813 AUXILIARY STEERING PUMP AND MOTOR (05) - STEERING

1

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - auxiliary steering, Includes: Ref. 1A - 20

1шт.

1a

D71479

MOTOR, ELECTRIC

MOTOR - electric, parts list figure 146

1шт.

1a

87454650

REMAN-HYD MOTOR

Remanufactured Steering Pump Motor; For N.A. only

1шт.

1a

87454651

CORE-MOTOR HYDRAULIC

Return number - For N.A. only

1шт.

2

D73638

SOLENOID

SOLENOID - electric motor

1шт.

3

D71481

CONNECTOR, ELEC

CONNECTOR STRAP - solenoid mounting

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

D71482

PUMP

PUMP ASSEMBLY - steering, Includes: Ref. 6 - 20

1шт.

6

D71496

COVER

COVER - front

1шт.

7

C15735

SEAL

SEAL - front cover

1шт.

8

D71498

COUPLING

COUPLING - pump drive

1шт.

9

D71497

PINION

DRIVE GEAR - pump

1шт.

10

C15731

GEAR

DRIVEN GEAR - pump

1шт.

11

C15732

SNAP RING

O-RING - seal

2шт.

12

C15738

SHIELD

HEAT SHIELD - pump

1шт.

13

C15739

GASKET

GASKET - pump

1шт.

14

C15740

SEAL ASSY.

SEAL - V-type

1шт.

15

C15737

PLATE

WEAR PLATE - pump

1шт.

16

C15733

SPARE PART SECTION - center

1шт.

17

F53109

DOWEL

DOWEL PIN - pump

2шт.

18

C15730

COVER

COVER - back

1шт.

19

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 2 1/2", G5

4шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

4шт.
