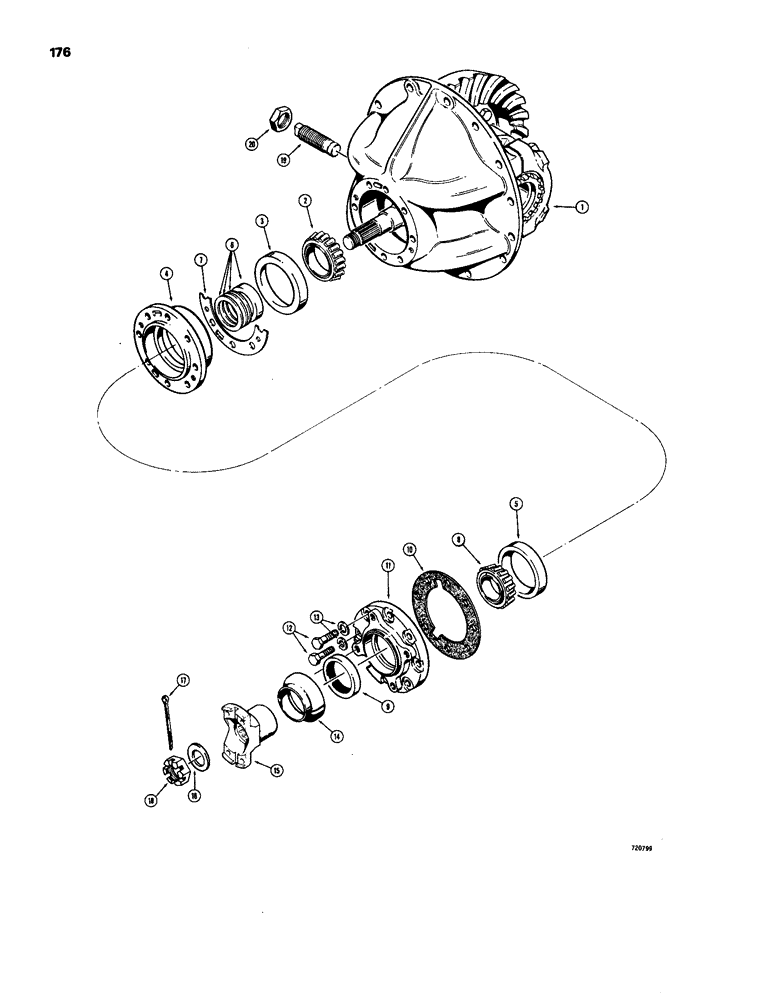

Запчасти Case W24B (176) - AXLE DIFFERENTIAL, PINION BEARINGS AND COMPANION FLANGE (06) - POWER TRAIN

1

REF

INSTRUCTION

CASE AND INTERNAL GEARING - differential, parts list figure 178 and 180, Includes: Ref. 2 - 20

1шт.

2

A25167

ROLLER BEARING,2" ID x 1.25"

CONE - bearing

1шт.

L33063

CAGE

AND CUP ASSEMBLY - pinion, Includes: Ref. 3 - 5

1шт.

3

A25168

BEARING CUP

CUP - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

5

A12949

BEARING CUP

CUP - bearing

1шт.

6

L33064

BUSHING

SPACER AND SHIM KIT - bearing

1шт.

7

L33065

SHIM

- .004" (.1020 mm) thick

1шт.

7

L35911

SHIM

- .007" (.1788 mm) thick

1шт.

7

L35912

SHIM

- .010" (.254 mm) thick

1шт.

8

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing

1шт.

9

L35250

OIL SEAL

- oil, pinion

1шт.

10

L33068

GASKET

- use 345-71 form-in-place gasket

1шт.

11

L35251

RETAINER

- pinion oil seal

1шт.

12

113-509

BOLT,Hex, 9/16" - 12 x 2", Gr 5

HHCS - 7/16" - 12 NC x 2", plated

7шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

13

92-9

BEARING WASHER,9/16"

7шт.

14

L33088

GUARD

SHIELD - dust, pinion

1шт.

15

L35525

FLANGE

- companion

1шт.

16

L33026

WASHER

- pinion shaft

1шт.

17

132-126

COTTER PIN,7/32" x 2"

Pin, Split (Cotter), 7/32" x 2"

1шт.

18

L33097

NUT

- pinion shaft

1шт.

19

L33061

SCREW,1 1/8" - 12 x 4 1/4"

- thrust, special

1шт.

20

25-66

NUT - hex lock, 1-1/8" - 12 NF

1шт.
