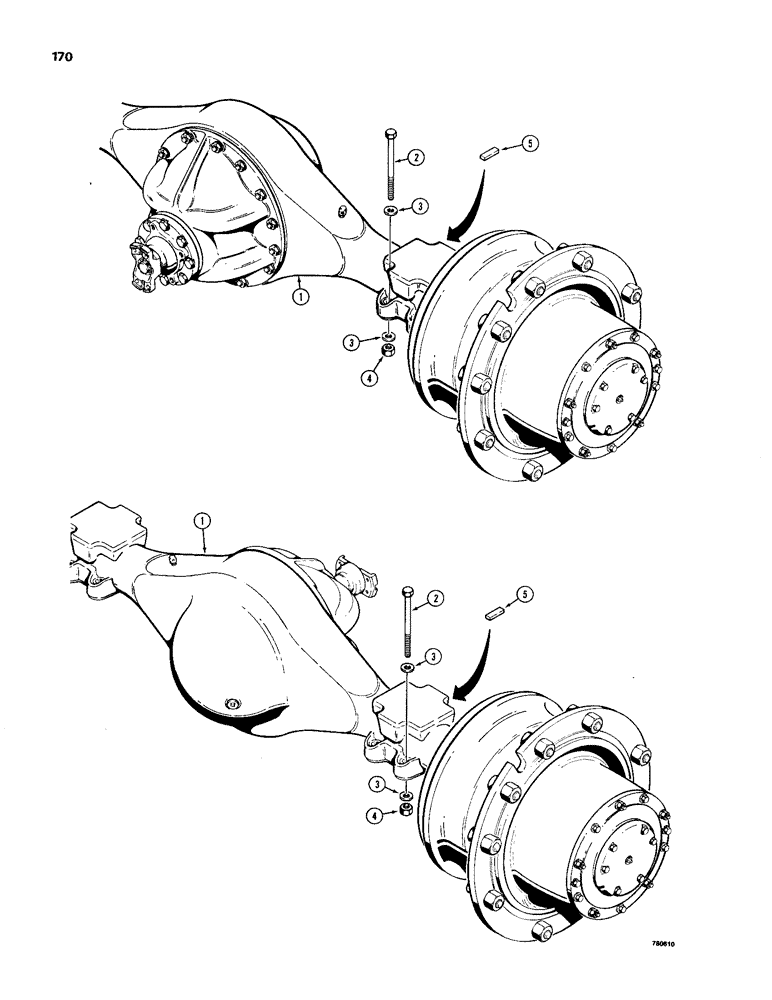

Запчасти Case W24B (170) - AXLE ASSEMBLIES (06) - POWER TRAIN

1

L55417

AXLE ASSEMBLY - front, parts list figures 166, 167A, 168 and 170

1шт.

1

L55418

AXLE ASSEMBLY - rear, parts list figures 166, 167A, 169A and 170

1шт.

2

116-902

BOLT,Hex, 1" - 14 x 9", Gr 8

HHCS - 1" - 14 NF x 9"

16шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

32шт.

4

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

5

L56119

BLOCK

- shear, if used

8шт.
