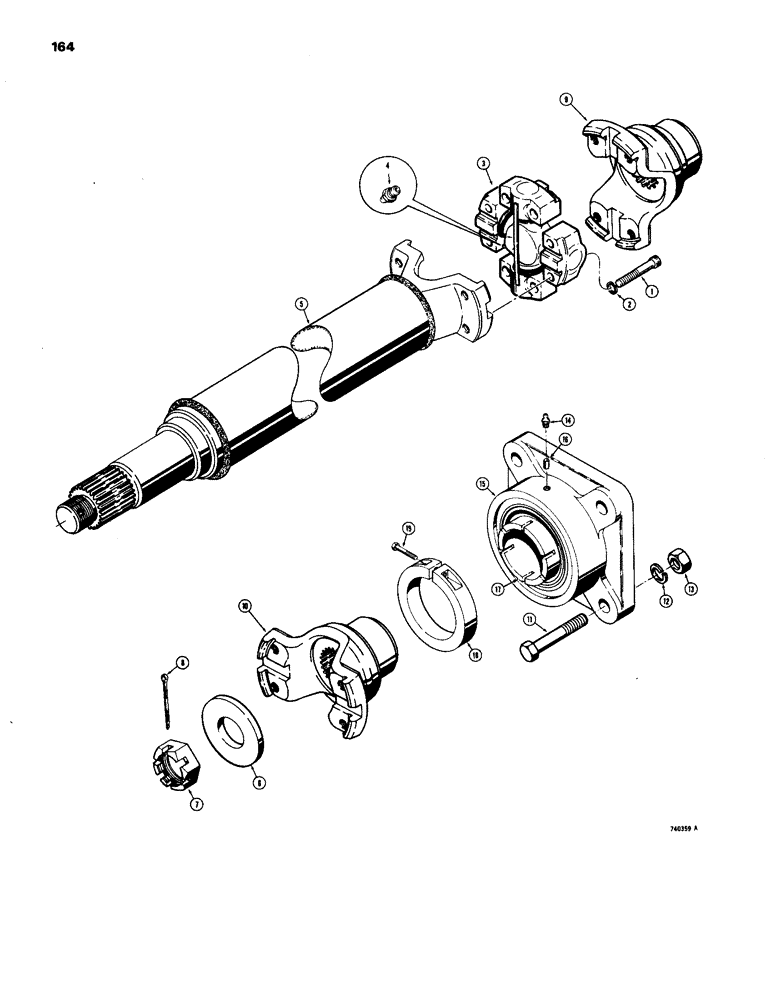

Запчасти Case W24B (164) - FRONT AXLE DRIVE SHAFT, (AXLE END) (06) - POWER TRAIN

L56027

DRIVE SHAFT

SHAFT ASSEMBLY - drive, Includes: Ref. 1 - 8

1шт.

1

L35514

12 PT SCREW,7/16" - 20 x 2"

BOLT - special

12шт.

2

L35513

WASHER

- lock, 7/16"

12шт.

L35511

KIT

SPIDER AND BEARING ASSEMBLY, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4" special

1шт.

5

L35512

YOKE

AND TUBE ASSEMBLY - drive shaft, axle end

1шт.

6

D28266

WASHER

- plain, special

1шт.

7

L33629

SPECIAL NUT

- hex, slotted

1шт.

8

132-59

PIN

- cotter, 1/8" x 2-1/2"

1шт.

9

L35525

FLANGE

- companion drive shaft to front axle

1шт.

10

L56029

YOKE

- drive shaft to center bearing

1шт.

11

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

HHCS - 9/16" - 12 NC x 1-3/4", L47724 drive shaft support bearing

4шт.

12

92-9

BEARING WASHER,9/16"

L47724 drive shaft support bearing 9/16"

4шт.

13

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC, L47724 drive shaft support bearing

4шт.

L47724

HOUSING, BEARING,2" ID x 4.5625" OD x 2.21875"

BEARING SUPPORT ASSEMBLY - front drive shaft, L47724 support bearing, Includes: Ref. 14 - 19

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, L47724 drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - bearing, L47724 drive shaft support

1шт.

16

L33788

AXLE PIN

PIN - lock 1/4" dia, L47724 drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, L47724 drive shaft support, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, L47724 drive shaft support

1шт.

18

L33789

COLLAR

- bearing, L47724 drive shaft support

1шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex socket head, 1/4" - 20 NC x 1" ( replaced 61-48 ), L47724 drive shaft support

1шт.
