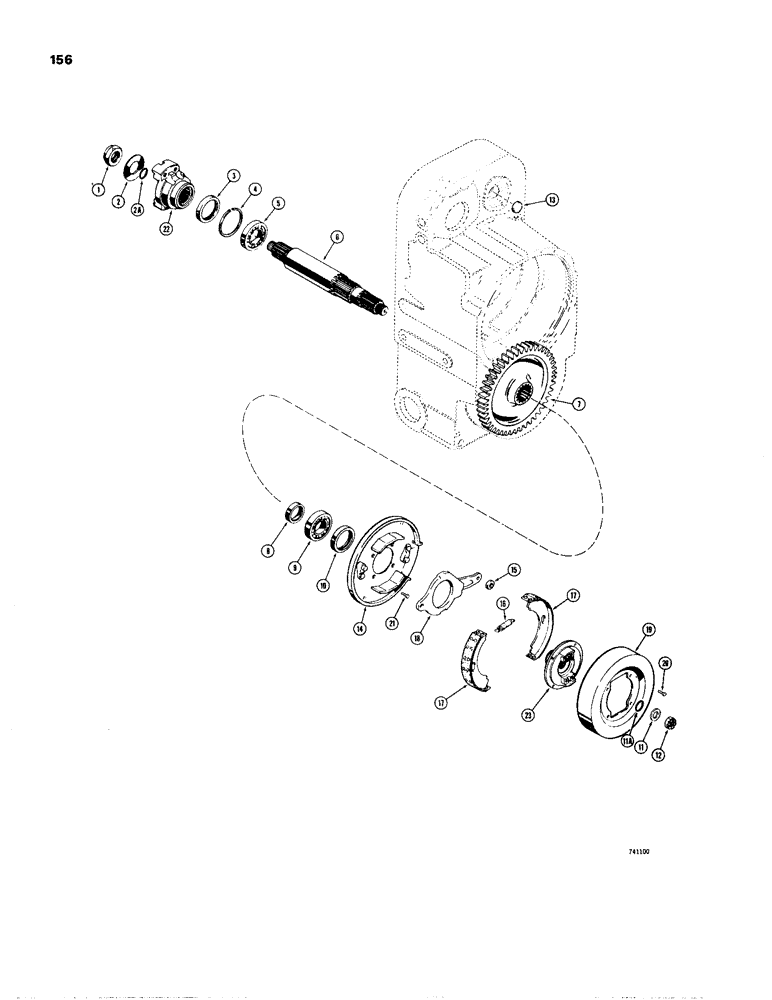

Запчасти Case W24B (156) - TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

1

L31165

NUT

- flange washer retaining

1шт.

2

L35974

WASHER

- flange retaining

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

3

D47485

SEAL

- oil

1шт.

4

D47486

SNAP RING

SNAP RING - internal type

1шт.

5

L31013

BALL BEARING

- ball type

1шт.

6

L36058

SHAFT

- output, main

1шт.

7

D47487

GEAR

- transfer

1шт.

8

D51506

BUSHING

SPACER - bearing

1шт.

9

D47489

ROLLER BEARING

BEARING - ball type

1шт.

10

D47485

SEAL

- oil

1шт.

11

L35974

WASHER

- flange retaining

1шт.

11a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

12

L31165

NUT

- flange washer retaining

1шт.

13

L33620

PLUG

- housing

1шт.

L33621

BRAKE

ASSEMBLY - parking, Includes: Ref. 14 - 19

1шт.

14

L33622

PLATE

- backing

1шт.

15

L33579

ROLLER

- brake

1шт.

16

A18134

SPRING

- brake shoe return (replaced A18272)

2шт.

17

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

Part of Lining Kit P/N D47507

1шт.

18

D47526

LEVER

- brake shoe

1шт.

19

D47527

DRUM

- brake

1шт.

20

121-215

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 3/4", Gr 8

HHCS - 3 /8" - 24 NF x 5/8" (replaced 121-212)

4шт.

21

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

4шт.

22

L72814

FLANGE

- transmission to rear axle drive shaft (replaced L72813)

1шт.

23

L72813

FLANGE

- transmission to front axle drive shaft (replaced L72814)

1шт.

D47507

CUP

LINING KIT - service replacement, includes (2) NSS linings and (24) L33939 rivets, Includes: Ref. 17

1шт.
