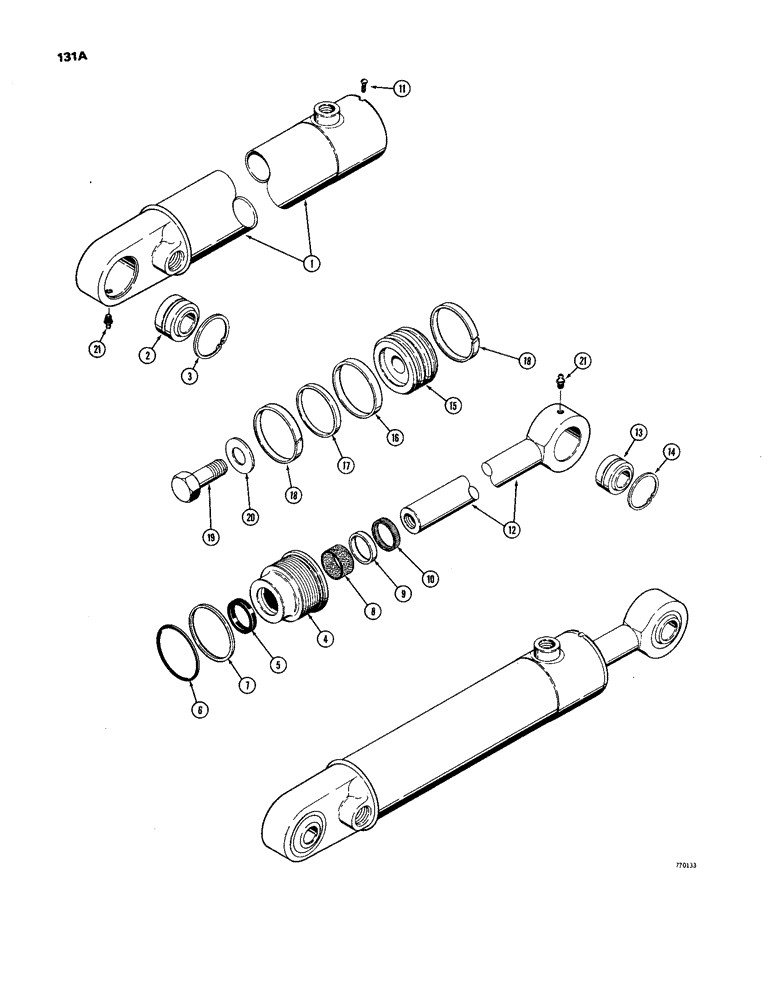

Запчасти Case W24B (131A) - G101274 AND G101275 STEERING CYLINDERS, TUBE IS STAMPED WITH CYL PART NUMBER (05) - STEERING

G101274

CYLINDER

- RH, 3" (76 mm) ID x 15" (381 mm) stroke

1шт.

G101275

CYLINDER

- LH, 3" (76 mm) ID x 15" (381 mm) stroke

1шт.

1

G101702

TUBE,3 mm DIA x 610.10 mm L

- G101274 Cylinder

1шт.

1

G101703

TUBE,3 mm DIA x 610.10 mm L

- G101275 Cylinder

1шт.

2

L12570

BUSHING

BEARING - self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

2шт.

G34328

GLAND

ASSEMBLY

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing

1шт.

5

D36969

CUP

SEAL - piston rod, P/N G100776 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G102404

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G102404

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102404

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Seal Kit P/N G102404

1шт.

9

NSS

NOT SOLD SEPARAT

RING - bearing backup

1шт.

10

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer

1шт.

Part of Seal Kit P/N G102404

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

12

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD ASSEMBLY - piston, 1-1/2" (39 mm) dia

1шт.

13

L12570

BUSHING

BEARING - self-aligning

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bearing retaining

2шт.

15

G100442

PISTON

1шт.

16

102288

SEAL

1шт.

Part of Seal Kit P/N G102404

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup

1шт.

Part of Seal Kit P/N G102404

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

1шт.

Part of Seal Kit P/N G102404

1шт.

19

28-1420

HHCS - 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT, straight

1шт.

G102404

SEAL

KIT - seal, Includes: Ref. 5-8, 10 and 16-18

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
