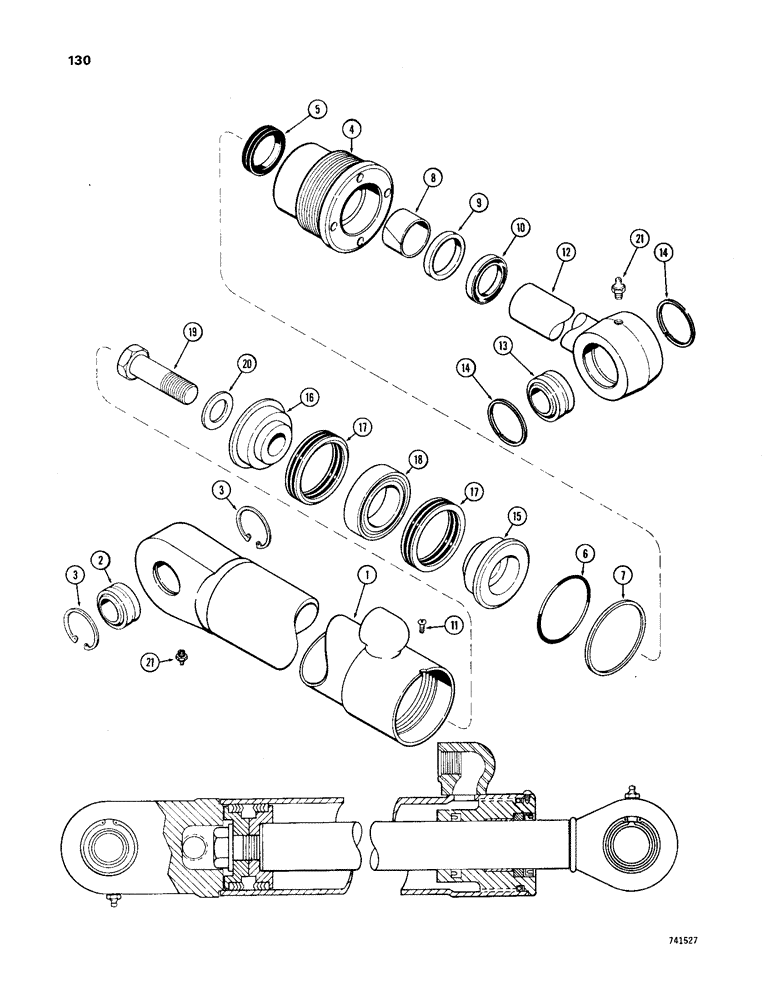

Запчасти Case W24B (130) - G34300 AND G34301 STEERING CYLINDERS, TUBE OR GLAND IS STAMPED W/CYLINDER PART NUMBER (05) - STEERING

G34300

CYLINDER

- RH, 3" (76 mm) ID x 15" (381 mm) stroke, Includes: Ref. 1 - 21

1шт.

G34301

STEERING CYLINDER

CYLINDER - LH, 3" (76 mm) ID x 15" (391 mm) stroke, Includes: Ref. 1 - 21

1шт.

1

G32860

TUBE,24.08" L

- G34300 Cylinder, Includes: Ref. 2 and 3

1шт.

1

G32861

TUBE,24.08" L

- G34301 Cylinder, Includes: Ref. 2 and 3

1шт.

2

L12570

BUSHING

BEARING - self-aligning, both tubes

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap

2шт.

G34328

GLAND

ASSEMBLY - with center bearing

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - packing

1шт.

5

D36969

CUP

SEAL - piston rod, P/N G100776 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G34332

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34332

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34332

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Seal Kit P/N G34332

1шт.

9

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

10

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit P/N G34332

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

12

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD ASSEMBLY - piston, 1-1/2" (39 mm) dia, Includes: Ref. 13 and 14

1шт.

13

L12570

BUSHING

BEARING -self-aligning

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap

2шт.

15

G33150

PISTON

- rod end

1шт.

16

D28366

PISTON

- bolt end

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 17 and 18

1шт.

Part of Seal Kit P/N G34332

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", grade 8 ( replaced 28-1420 )

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT, straight

2шт.

G34332

SEAL

KIT - seal, Includes: Ref. 5-8, 10 and P/N G33151

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
