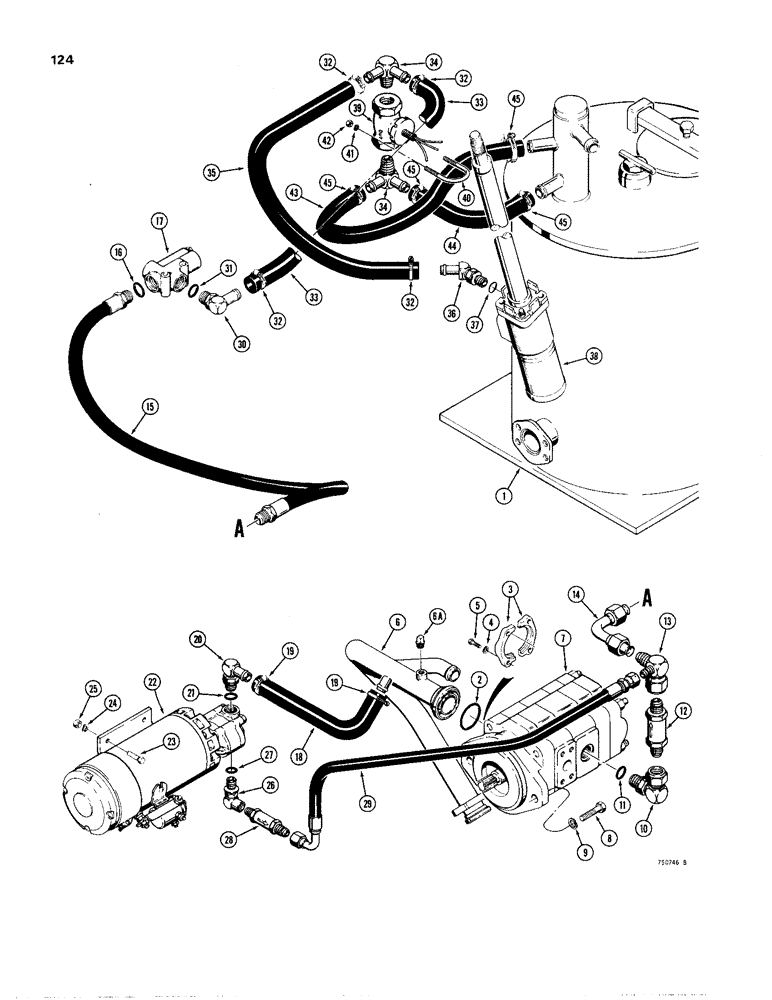

Запчасти Case W24B (124) - AUXILIARY STEERING HYDRAULIC CIRCUITS (05) - STEERING

1

REF

INSTRUCTION

TANK - hydraulic, see figure 214

1шт.

2

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

3

A14141

FLANGE

- split, tube

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

L59314

MANIFOLD

- pump inlet

1шт.

6a

222-12

FITTING,7/16"-24 Inv Fl x 1/8" NPT Fem

PLUG - square head, 1/4" NPT

1шт.

7

REF

INSTRUCTION

PUMP - hydraulic, parts list figure 132

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

L59310

ELBOW UNION

FITTING - pump outlet, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

L58391

VALVE

- check

1шт.

13

L59313

FITTING

- check valve to pressure tube

1шт.

14

L59098

TUBE,0.75" OD x 4.13, 3.56" L

- pump to flow divider valve

1шт.

15

L51827

HOSE

- 29-1/2" (749 mm) long

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

L48888

FLOW DIVIDER

VALVE - flow control, parts list Fig. 122

1шт.

18

L53571

HOSE ASSY.

HOSE - 16" (406 mm) long x 3/4" (19 mm) ID

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

20

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

- 90 degrees, hose stem, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

L70813

HYDRAULIC STEERING

PUMP - auxiliary steering, parts list Fig. 126

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

218-5460

FITTING

- 90 degrees, Includes: Ref. 27

1шт.

28

L70819

VALVE

- check

1шт.

29

L59315

HOSE

- auxiliary pump to flow divider

1шт.

30

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

- 90 degrees, hose stem, Includes: Ref. 31

1шт.

32

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

33

D64064

LARGE HOSE

HOSE - 27" (686 mm) long

1шт.

34

L59868

FITTING - hose stem

2шт.

35

L53571

HOSE ASSY.

HOSE - 16" (406 mm) long x 3/4" (19 mm) ID

1шт.

36

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- 45 degrees, hose stem, Includes: Ref. 37

1шт.

38

REF

INSTRUCTION

VALVE - steering, see figure 120

1шт.

39

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

40

L59832

U-BOLT

BOLT - "U", 1/4" - 20 NC

1шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

25-104

NUT,1/4"-20, G5

2шт.

43

D64774

LARGE HOSE

HOSE - 27" (686 mm) long x 3/4" (19 mm) ID

1шт.

44

R21518

LARGE HOSE

HOSE - 12" (305 mm) long x 3/4" (19 mm) ID

1шт.

45

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
