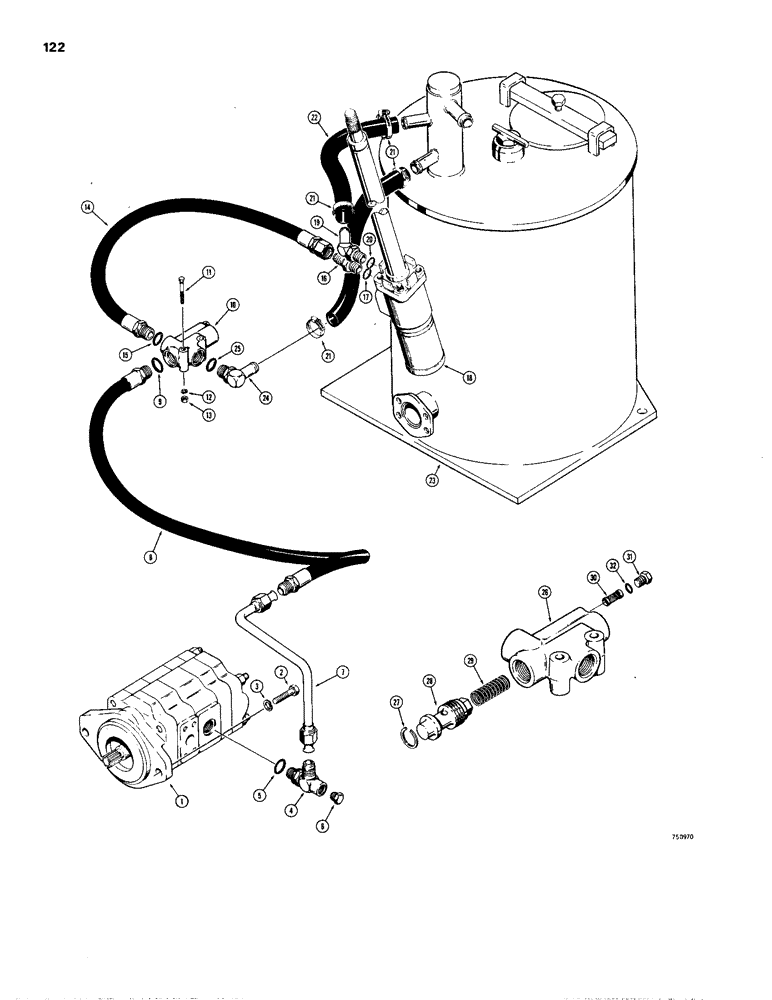

Запчасти Case W24B (122) - STEERING HYDRAULIC CIRCUITS - PUMP TO RESERVOIR, MODELS W/O AUXILLARY STEERING (05) - STEERING

1

L71667

PUMP

- hydraulic, parts list Fig. 132

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

L53012

TEE

- check, steering, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT

1шт.

7

L52011

TUBE,0.75" OD

- hydraulic, pump to flow valve

1шт.

8

L51827

HOSE

- 29-1/2" (749 mm) long

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-ring

1шт.

10

L48888

FLOW DIVIDER

VALVE - flow control, parts list below

1шт.

11

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

14

L51826

HOSE

- 26-1/2" (673 mm) long

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 17 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

REF

INSTRUCTION

VALVE - steering, parts list figure 120

1шт.

19

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

- 45 degrees, hose stem, Includes: Ref. 20

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

4шт.

22

L53571

HOSE ASSY.

HOSE - 3/4" (19 mm) ID x 16" (406 mm) long

2шт.

23

L53571

HOSE ASSY.

TANK - hydraulic reservoir, parts list figure 214

1шт.

24

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

- 90 degrees, hose stem, Includes: Ref. 25

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

L48888

FLOW DIVIDER

VALVE - hydraulic, flow control, Includes: Ref. 26 - 32

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - valve, flow control

1шт.

27

D46214

CIRCLIP

SNAP RING - spool retaining, flow control valve

1шт.

28

L35277

SPOOL

- valve, flow control

1шт.

29

D46216

SPRING

- spool, flow control valve

1шт.

30

L33959

FILTER, ENGINE OIL

SCREEN - filter, flow control valve

1шт.

31

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter access, Flow control valve, Includes Ref. 32 Hex Hd, 3/8"-24 ORB

1шт.

32

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, flow control valve

1шт.
