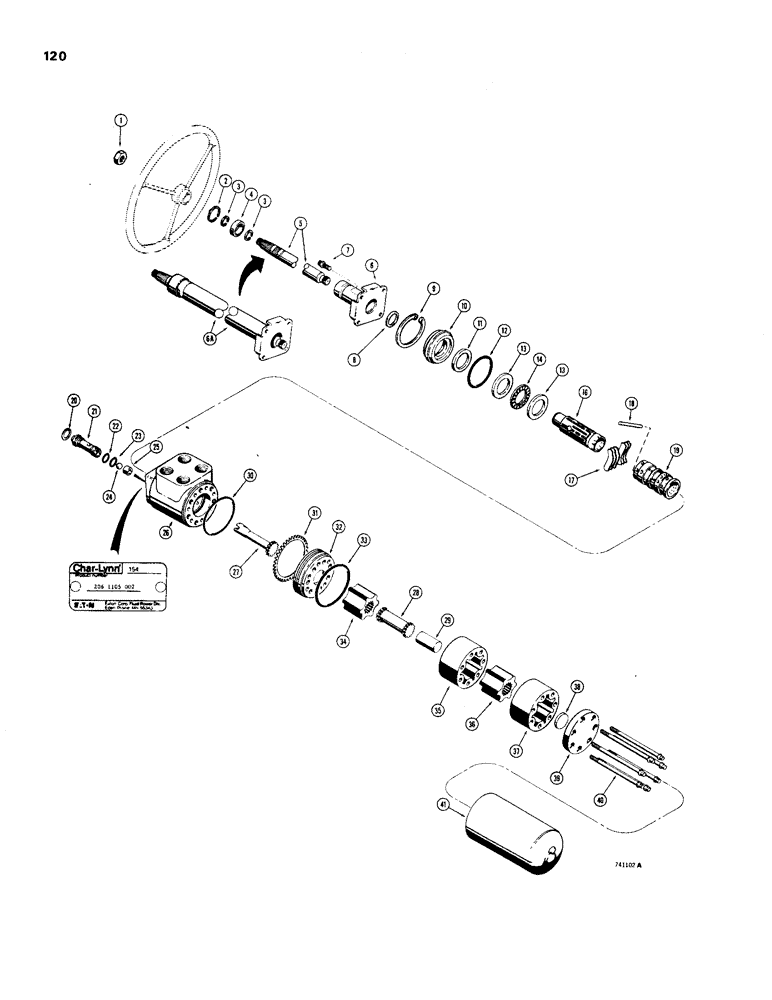

Запчасти Case W24B (120) - STEERING CONTROL VALVE (05) - STEERING

L79644

GEAR WHEEL

VALVE AND COLUMN ASSEMBLY - Char-Lynn #214-1087-001, service parts not shown or listed, Includes: Ref. 1 - 41

1шт.

L79425

PUMP

VALVE AND COLUMN ASSEMBLY - Char-Lynn #-206-1105-002, service parts list below, Includes: Ref. 1 - 41

1шт.

L71781

VALVE AND COLUMN ASSEMBLY - Char-Lyn #XS-942-(x), service parts list below, Includes: Ref. 1 - 41

1шт.

1

L33715

JAM NUT

- steering wheel retaining

1шт.

L35372

STEERING COLUMN

COLUMN ASSEMBLY - steering, use D80622 column assembly, Includes: Ref. 2 - 6

1шт.

2

D46319

OIL SEAL

RING - bearing retaining, outer

1шт.

3

F53335

RING, SNAP

SNAP RING - bearing retaining

2шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- steering shaft

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - steering

1шт.

6

L35373

COLUMN - tube and flange

1шт.

6a

D80622

STEERING COLUMN

COLUMN ASSEMBLY, Includes: Ref. 8 - 26

1шт.

7

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - ferry cap, 3/8" - 16 NC x 3/4"

2шт.

L35547

VALVE

ASSEMBLY - steering, manual

1шт.

8

A28211

OIL SEAL

- oil

1шт.

9

L35364

SNAP RING,#212, 2.217", Int, Spiral

RING - retaining, gland

1шт.

10

L35365

GLAND

- shaft seal

1шт.

11

A72029

RING

SEAL - quad ring

1шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - O-ring

1шт.

13

L35366

BEARING

WASHER - thrust bearing

2шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST (Roller type)

1шт.

L35367

CONTROL BLOCK

CONTROL ASSEMBLY - valve

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL - pump

1шт.

17

L30889

SPRING

- centering

6шт.

18

L30888

PIN

- centering

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - pump

1шт.

20

L35370

RING - retaining, check seat #53, .564, Int, Spiral

1шт.

21

L35369

SEAT - check

1шт.

22

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- outer

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

24

211-9

BALL,5/16" Dia

- steel, 5/16" Dia

1шт.

25

L35368

RETAINER

- ball

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

27

L35703

SHAFT - drive pump

1шт.

28

L35359

SPACER - drive shaft, ribbed

1шт.

29

L35358

SPACER - drive shaft, plain

1шт.

30

L35362

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

1шт.

31

L35701

RING

- retaining, spacer plate

1шт.

32

L35704

PLATE - spacer

1шт.

33

L35700

O-RING

1шт.

D51215

GEAR WHEEL

GEAR SET - control end, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

L35357

GEAR SET - closed end

1шт.

36

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

38

L35356

PLUG

- gear

1шт.

39

L35355

PLATE - end, gear

1шт.

40

L35702

SCREW,5/16" - 24

- ferry cap, 5/16" - 24 NF Special

7шт.

41

L35548

HOUSING - gear

1шт.
