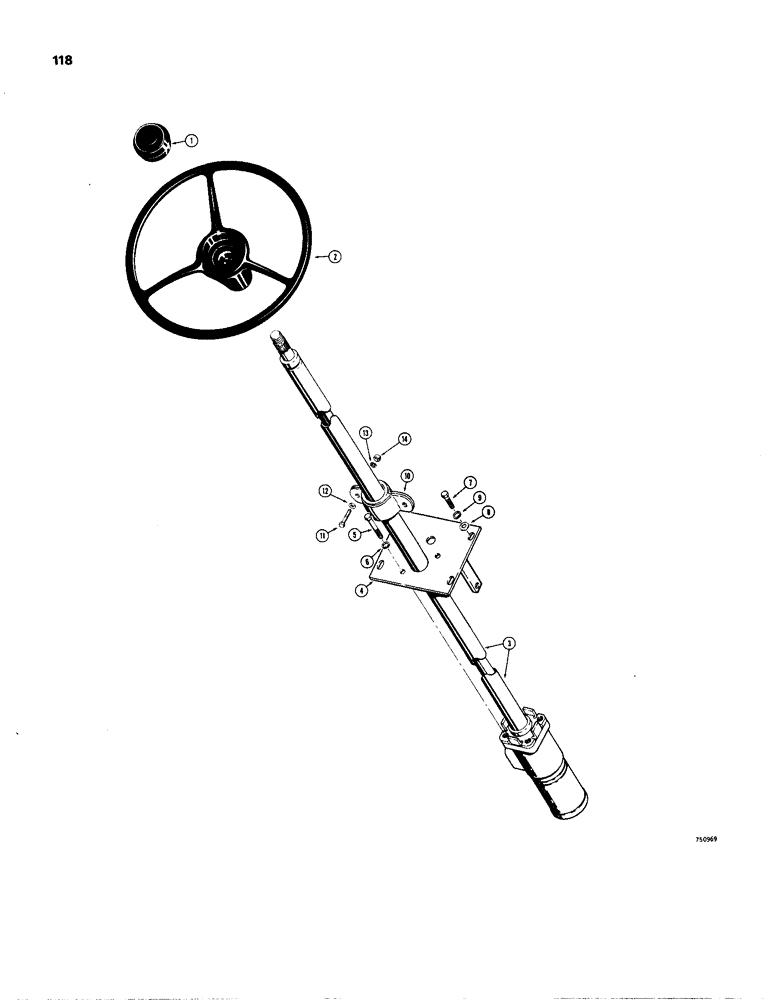

Запчасти Case W24B (118) - STEERING CONTROL VALVE AND RELATED PARTS (05) - STEERING

1

L18519

CAP

- steering wheel

1шт.

2

L74518

WHEEL

- steering

1шт.

3

REF

INSTRUCTION

VALVE - steering, parts list figure 120

1шт.

4

L58742

PLATE

- steering, pump mounting

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

L50073

BEARING CARRIER

BEARING ASSEMBLY - steering column

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

L33715

JAM NUT

- hex

1шт.
