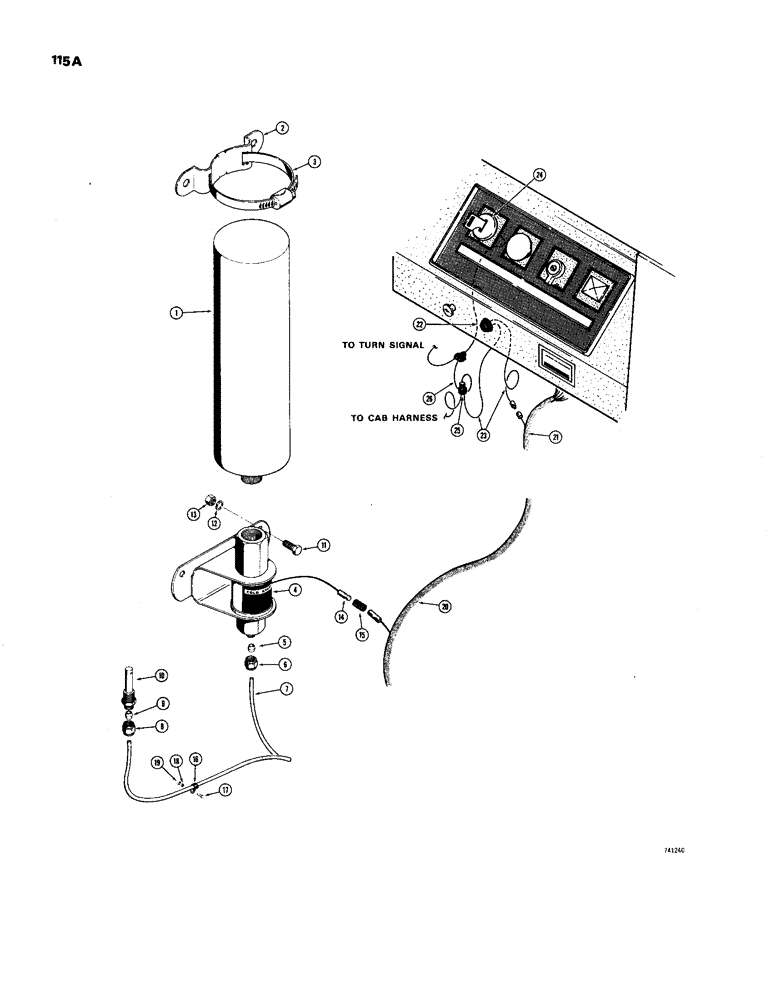

Запчасти Case W24B (115A) - COLD START SYSTEM, SEE ITEMS 1 AND 4 FOR IDENTIFICATION (04) - ELECTRICAL SYSTEMS

L53196

START SPRAY FLUID

KIT - cold starting aid, Includes: Ref. 1 - 10

1шт.

1

D55767

CYLINDER

- either

1шт.

2

D55949

BRACKET

- clamp mounting

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tank retaining

1шт.

4

L35280

VALVE

ASSEMBLY - actuator, Includes: Ref. 5 and 6

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Flex 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- flex tube 5/16"-24, 45º Fl, Comp

1шт.

L35283

PACKAGE, REPAIR

SEAL KIT - overhaul repair

1шт.

NSS

NOT SOLD SEPARAT

O-RING - cylinder to valve, 13/16" ID (21 mm)

1шт.

NSS

NOT SOLD SEPARAT

O-RING - armature, 9/32" ID (7 mm)

1шт.

NSS

NOT SOLD SEPARAT

O-RING - retainer fitting, 3/4" ID (19 mm)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - bumper retainer fitting

1шт.

7

L35281

TUBE,0.125" OD x 60" L

- nylon, 1/8" OD x 60" long, (3 mm x 1524 mm) cut to length

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- flex tube 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Flex 1/8" Tube, Comp

1шт.

10

L35282

JET

NOZZLE - manifold

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

4шт.

14

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet Male

1шт.

15

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

INSULATOR - connector

1шт.

16

49853

TOOL

- wiring

2шт.

17

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

20

REF

INSTRUCTION

HARNESS - rear, see figure 88

1шт.

21

REF

INSTRUCTION

HARNESS - front, see figure 86, Includes: Ref. 22

1шт.

22

L72776

SWITCH

- push button, cold start

1шт.

23

A18112

ELECTRICAL WIRE

WIRE - jumper, push button switch

2шт.

24

REF

INSTRUCTION

SWITCH - ignition, includes wire and 3-way connector

1шт.

25

A8210

CONNECTOR, ELEC

CONNECTOR - 3-way

1шт.

26

L58674

ELECTRICAL WIRE

WIRE - jumper

1шт.
