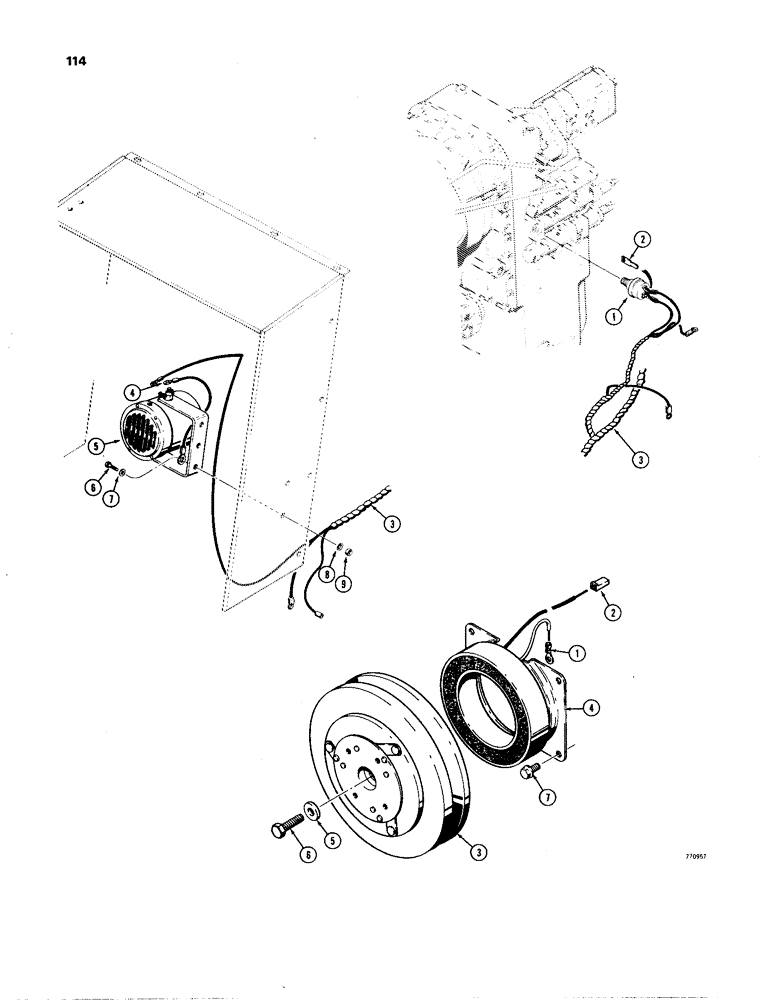

Запчасти Case W24B (114) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L57459

SWITCH

- backup alarm

1шт.

2

L59682

TERMINAL CONNECTOR

TERMINAL - straight

1шт.

3

L71735

HARNESS

- rear, tractor

1шт.

4

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.

5

L70498

ALARM

ASSEMBLY - backup

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

L70226

CLUTCH

ASSEMBLY, air conditioner, Includes: Ref. 1 - 7

1шт.

1

223-95

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - female, air conditioner clutch

1шт.

2

223-154

CONNECTOR, ELEC

CONNECTOR - male, air conditiner clutch

1шт.

3

NSS

NOT SOLD SEPARAT

PULLEY, air conditioner clutch

1шт.

4

D75864

COIL ASSY.

FIELD ASSEMBLY, air conditioner clutch

1шт.

5

195-2019

WASHER

- flat, 5/16", air conditioner clutch

1шт.

6

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

Air conditioner clutch Hex, 5/16"-24 x 1 1/4", G5

1шт.

7

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

Locking, 1/4"-20 x 1/2", G5, Full Thd, Air conditioner clutch

3шт.
