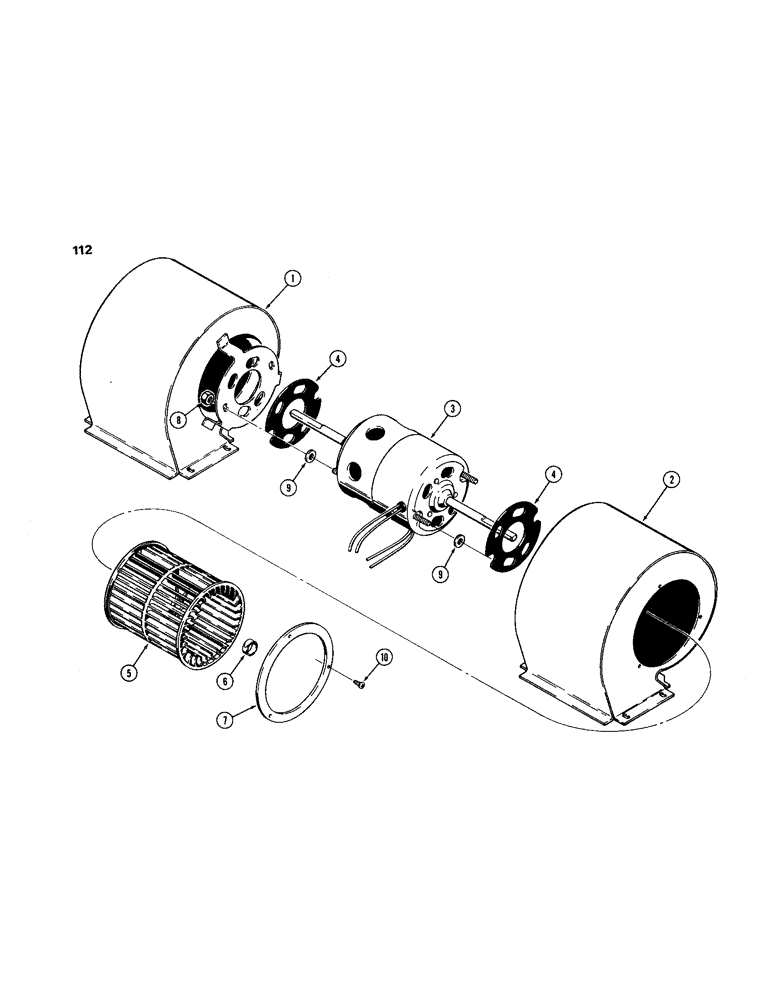

Запчасти Case W24B (112) - D71529 BLOWER (04) - ELECTRICAL SYSTEMS

D71529

HEATER

BLOWER ASSEMBLY - cab, Includes: Ref. 1 - 10

1шт.

1

D72757

HOUSING

- blower, LH

1шт.

2

D72758

HOUSING

- blower, RH

1шт.

3

D72759

MOTOR, ELECTRIC

MOTOR - blower, 24V

1шт.

4

D72760

GASKET

- motor

2шт.

5

D72761

FAN

- blower

2шт.

6

D72762

HOSE CLAMP

CLIP - ring, fan retaining

2шт.

7

D72763

RING

- inlet

2шт.

8

129-37

NUT,#10-32

4шт.

9

195-513

WASHER,#10

- flat, , plated #10

4шт.

10

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- self-tapping, #6

6шт.
