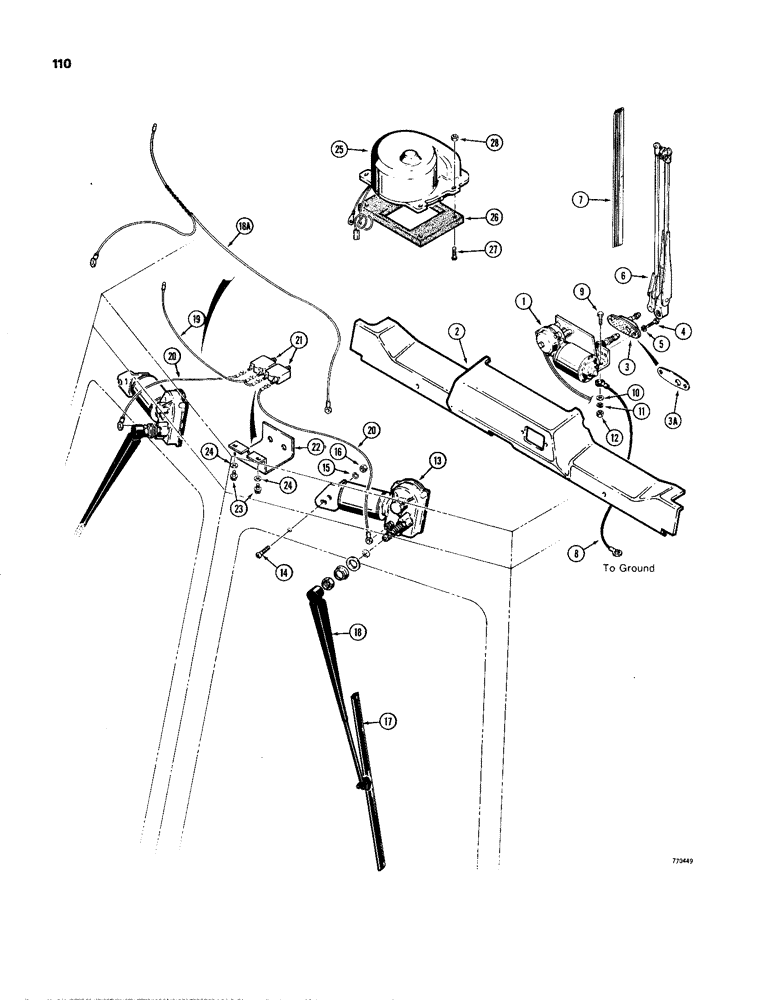

Запчасти Case W24B (110) - CAB WIPERS, FRONT WIPER - INCLUDED IN CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

MOTOR - front wiper, parts list figure 112

1шт.

1

REF

INSTRUCTION

MOTOR - front wiper, parts list figure 112

1шт.

2

L71469

COVER

- wiper, motor, before tractor sn 9130785

1шт.

2

L77437

PANEL

COVER - wiper, motor, tractor SN 9130785 and after

1шт.

3

L35753

ADAPTER

- panograph wiper

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

L35263

ARM

- wiper, 18" (458 mm) long

1шт.

7

F42214

WIPER

BLADE - wiper, 18" (458 mm) long

1шт.

8

L40793

ELECTRICAL WIRE

WIRE - ground

1шт.

9

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

10

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

11

92-7

LOCK WASHER,7/16"

1шт.

12

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

13

F93633

MOTOR, ELECTRIC

MOTOR - wiper, rear, optional

2шт.

14

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

pan head, #10 - 24 NC x 1/2", rear wiper - optional

2шт.

15

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Rear wiper - optional Ext-Int Tooth, #10

2шт.

16

129-17

NUT,Hex, #10 - 24

NUT - hex, #10 - 24 NC, rear wiper - optional

2шт.

17

F43517

WIPER BLADE

BLADE - wiper, 12 " (229 mm) long, rear - optional

2шт.

18

F43516

ARM

- wiper, 9" (229 mm) long, rear - optional

2шт.

Should be 6" to 10" adjustable length

1шт.

18a

F43518

HARNESS

WIRE - jumper, if used, rear wiper - optional

1шт.

19

L77036

ELECTRICAL WIRE

WIRE - cab to circuit breaker, rear wiper - optional

1шт.

20

L76821

ELECTRICAL WIRE

WIRE - jumper, rear wiper - optional

2шт.

21

L76726

BREAKER

CIRCUIT BREAKER - 3 amp, rear wiper - optional

2шт.

22

L76818

BRACKET

rear wiper - optional

1шт.

23

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted, #10 -24 NC x 1/2", plated, rear wiper - optional

2шт.

24

195-12

WASHER,#10

- flat, , plated, rear wiper - optional #10

2шт.

25

F43618

DIFFUSER

DEFOGGER ( replaced F43628 ) mounting

1шт.

26

F43619

SEAL

defogger mounting

1шт.

27

182-132

SCREW,Slotted Pan Hd, #10-24 x 1 1/2"

- #10 - 24 NC x 1-1/2", defogger mounting

4шт.

28

121-67

NUT - hex self lock, #10-24 NC, defogger mounting

4шт.
