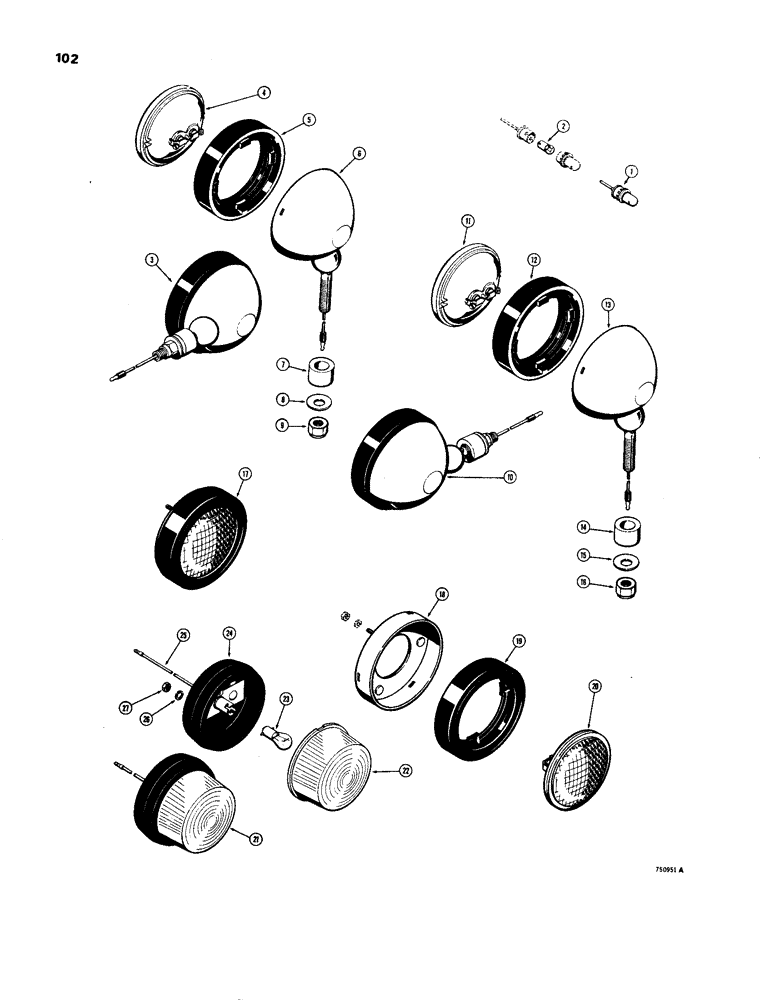

Запчасти Case W24B (102) - LIGHTS, INSTRUMENT PANEL LIGHT (04) - ELECTRICAL SYSTEMS

1

L55568

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, 12 volt

2шт.

1

A22349

BULB

- panel light

1шт.

3

L71729

LAMP

LIGHT ASSEMBLY - head, front, 24 volt

2шт.

4

A25209

LAMP

LIGHT - head front

1шт.

5

A25210

MOUNTING PARTS

RETAINER - light front head

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - light front head

1шт.

7

D37048

BUSHING

- light pivot front head

1шт.

8

D37049

WASHER

- special, front head light

1шт.

9

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex self lock, 1/2" - 20 NF, front head light

1шт.

10

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - flood, front, 24 volt

2шт.

11

D37920

LAMP

LIGHT - head, front flood

1шт.

12

A25210

MOUNTING PARTS

RETAINER - light, front flood

1шт.

13

NSS

NOT SOLD SEPARAT

SHELL - light, front flood

1шт.

14

D37048

BUSHING

- light, front flood

1шт.

15

D37049

WASHER

- special, front flood

1шт.

16

131-58

LOCK NUT,1/2"-20, G5

NUT - hex self lock, 1/2" - 20 NF, front flood light

1шт.

17

D35909

LAMP

LIGHT ASSEMBLY - flood, rear, 24 volt

2шт.

18

NSS

NOT SOLD SEPARAT

FRAME - light rear flood

1шт.

19

D37966

RETAINER

- light, Guide lamp, if used, rear flood

1шт.

19

A25210

MOUNTING PARTS

RETAINER - light, Hobbs, if used, rear flood

1шт.

20

D37920

LAMP

LIGHT - rear flood

1шт.

21

L13304

LAMP BASE

LIGHT ASSEMBLY - stop and tail, 24 volt

2шт.

22

L31185

LIGHT FAIRING

LENS - light stop and tail

1шт.

23

A15084

LAMP

BULB - light stop and tail

1шт.

24

NSS

NOT SOLD SEPARAT

RETAINER - light stop and tail

1шт.

25

L31186

ELECTRICAL WIRE

WIRE - light stop and tail

1шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Stop and tail light 1/4"

2шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Stop and tail light

2шт.
