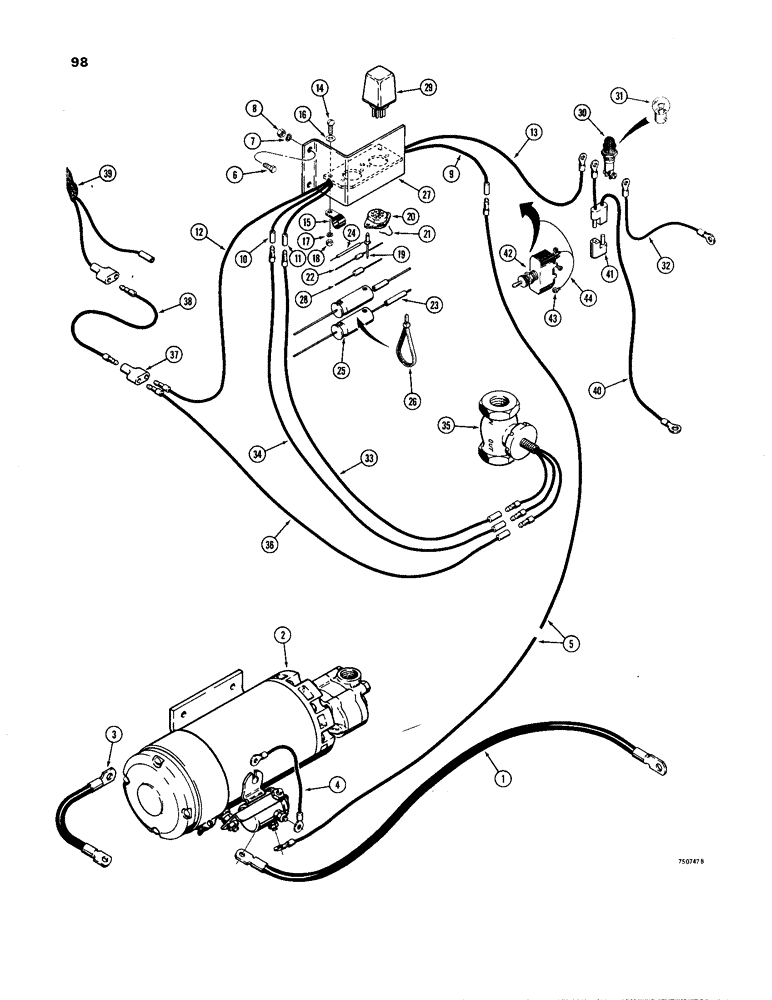

Запчасти Case W24B (098) - ELECTRICAL SYSTEM, AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L57534

CABLE

- power supply

1шт.

2

D71479

MOTOR, ELECTRIC

MOTOR - steering, parts list Fig. 100

1шт.

3

L57536

CABLE

WIRE - ground, pump

1шт.

4

A18457

ELECTRICAL WIRE

WIRE - ground, solenoid

1шт.

5

L58424

ELECTRICAL WIRE

WIRE -, Serial Range: relay-solenoid

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

L79605

SOCKET

RELAY ASSEMBLY, Includes: Ref. 9 - 28

1шт.

9

L70804

ELECTRICAL WIRE

WIRE -, Serial Range: solenoid-relay

1шт.

10

L100265

ELECTRICAL WIRE

WIRE -, Serial Range: switch-relay

1шт.

11

L100266

ELECTRICAL WIRE

WIRE - flow, Serial Range: switch-relay

1шт.

12

L57997

ELECTRICAL WIRE

WIRE -, Serial Range: harness-relay

1шт.

13

L79604

ELECTRICAL WIRE

WIRE -, Serial Range: light-relay

1шт.

14

169-77

SCREW - fillister head, #8 - 32 NC x 1/2"

2шт.

15

L70803

CLAMP

- wire

2шт.

16

195-10

WASHER,#8

2шт.

17

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

18

129-6

NUT,#8-32

2шт.

19

151-526

RIVET,Pop, 1/8" x .337"

4шт.

20

L57132

SOCKET

- relay

2шт.

21

L70845

ELECTRICAL WIRE

WIRE - ground

2шт.

22

L101026

RESISTOR

- 47 ohm, 2 watt

1шт.

23

223-126

SLEEVE

TUBING - shrink

2шт.

24

L57998

ELECTRICAL WIRE

WIRE - jumper

1шт.

25

L72299

CAPACITOR

- 2000 mfd, 50 volt

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

1шт.

27

L70807

BRACKET

- relay

1шт.

28

L72692

RESISTOR

- 390 ohms

1шт.

29

L58331

RELAY

- steering

2шт.

30

L47161

LAMP BASE

LIGHT - warning

1шт.

31

P0732978Q

SCREW

BULB - 24 volt, #1843

1шт.

32

L71415

ELECTRICAL WIRE

WIRE - ground

1шт.

33

L58417

ELECTRICAL WIRE

WIRE - relay to flow switch

1шт.

34

L58413

ELECTRICAL WIRE

WIRE - relay to flow switch

1шт.

35

L58400

PRESSURE SWITCH

SWITCH - flow

1шт.

36

L71669

ELECTRICAL WIRE

WIRE - harness to flow switch

1шт.

37

A8210

CONNECTOR, ELEC

CONNECTOR - electrical 3-way

1шт.

38

L72397

ELECTRICAL WIRE

WIRE - jumper

1шт.

39

REF

INSTRUCTION

HARNESS - instrument

1шт.

40

L72598

ELECTRICAL WIRE

WIRE -, Serial Range: light-buzzer

1шт.

41

L11760

DIODE

1шт.

42

F22295

SWITCH

- if used ( replaced F22293 )

1шт.

43

223-58

TERMINAL CONNECTOR,14 - 16

CONNECTOR - eyelet

1шт.

44

L79323

WIRE - if used

1шт.
