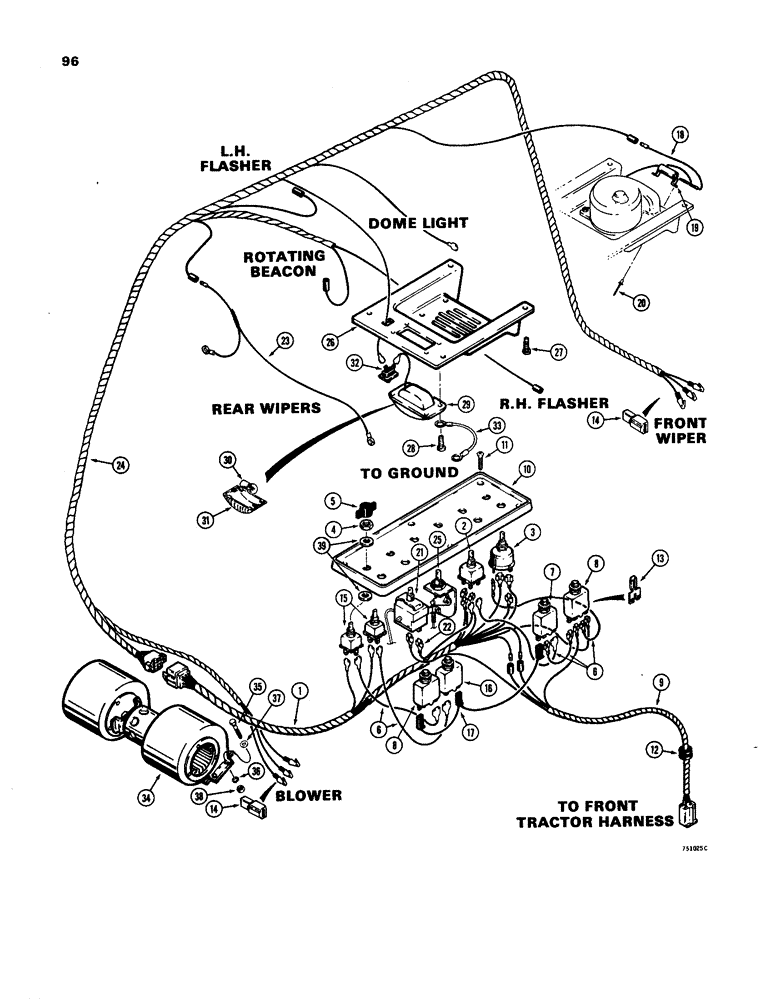

Запчасти Case W24B (096) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS

1

L74804

HARNESS

- panel to cab ( replaced F43263 )

1шт.

2

A42622

SWITCH

- blower

1шт.

3

F43359

SWITCH

- wiper

1шт.

4

L78307

NUT

- switches

6шт.

5

L74694

KNOB

- switches

5шт.

6

F43266

ELECTRICAL WIRE

WIRE - jumper

5шт.

7

L59972

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

8

L76726

BREAKER

CIRCUIT BREAKER - 3 amp

2шт.

9

L101237

HARNESS

- panel power supply

1шт.

10

F43187

PANEL

- accessory

1шт.

11

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, Phillips, #10 - 16 NC x 3/4"

6шт.

12

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

1шт.

13

F43508

SPADE TERMINAL

TERMINAL - double spade, if used

2шт.

14

223-375

CONNECTOR - electrical, plastic

6шт.

15

L70872

SWITCH

- beacon and defogger

2шт.

16

F43510

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

17

L71009

ELECTRICAL WIRE

WIRE - jumper

1шт.

18

F43626

ELECTRICAL WIRE

WIRE -, Serial Range: power-defogger

2шт.

19

F43625

RESISTOR

- defogger

1шт.

20

151-535

RIVET,Pop, 1/8" x .462"

2шт.

21

L73646

SWITCH

- air conditioning

1шт.

22

A42624

ELECTRICAL WIRE

WIRE -, Serial Range: blower-switch

1шт.

23

F43518

HARNESS

WIRE - jumper, wiper

1шт.

24

D71507

HARNESS

- used before cab sn 27750

1шт.

24

D76954

HARNESS

- used on cab sn 27750 and after

1шт.

25

L73991

CABLE

ASSEMBLY - heater control

1шт.

26

L74557

COVER

- dome light and defogger, cab sn 24051 and after

1шт.

26

F43543

COVER

- dome light and defogger, before cab sn 24051

1шт.

27

187-1015

SELF-TAP SCREW,Slotted Flat Hd, #10 x 1/2"

SCREW - self-tapping, #10 - 32 NC x 1/2"

4шт.

27

187-1051

SCREW - self-tapping, #8 - 32 NC x 1/2"

4шт.

29

D71519

LAMP

ASSEMBLY - dome, Includes: Ref. 30 and 31

1шт.

30

D71459

LAMP

- 24V, #1591

1шт.

31

D71458

LAMP

LENS

1шт.

32

D75876

IGNITION SWITCH

SWITCH - dome light, cab sn 24051 and after

1шт.

32

F43504

SWITCH

- dome light, before cab sn 24051

1шт.

33

D72842

ELECTRICAL WIRE

WIRE - ground

1шт.

34

D71529

HEATER

BLOWER - cab, parts list Fig. 112

1шт.

35

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

37

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

4шт.

39

L78577

WASHER

- special

6шт.
