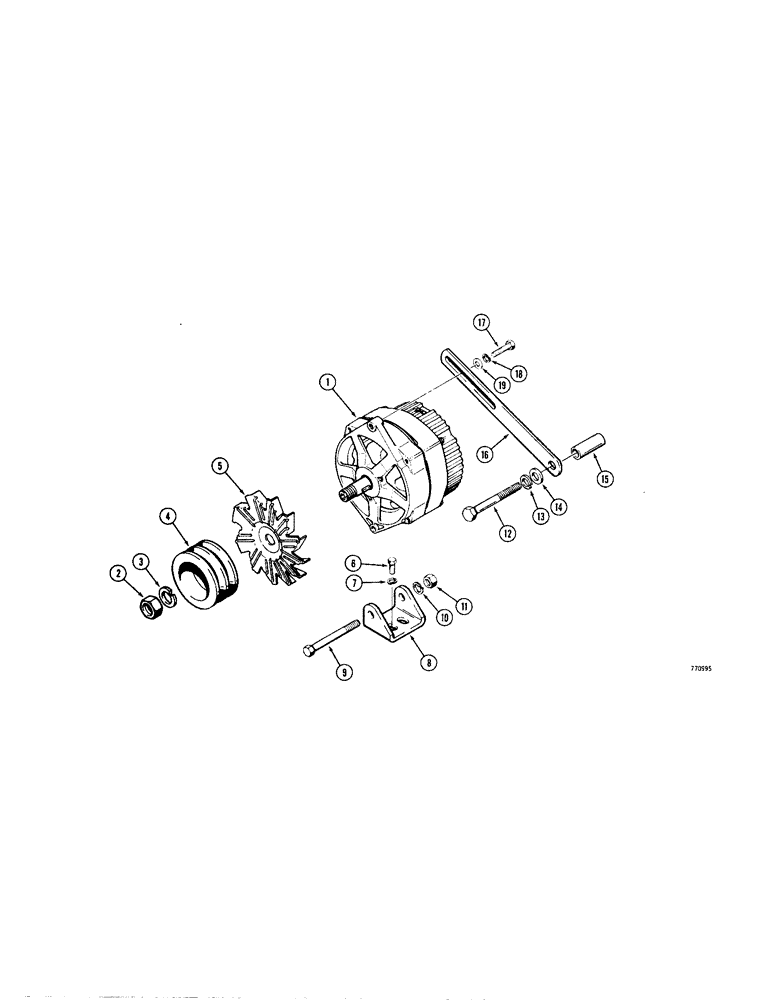

Запчасти Case W24B (094[1]) - ALTERNATOR - 40 AMP (04) - ELECTRICAL SYSTEMS

1

L78103

ALTERNATOR

- 24V, 40 amp, Delco-Remy #1102918, parts list Fig. 074, Includes: Ref. 2 and 3

1шт.

1

L59901

ALTERNATOR

- 24V, 40 amp, Delco-Remy #1102349, parts list Fig. 072, Includes: Ref. 2 and 3

1шт.

2

A41035

NUT

- hex, 5/8" - 18 NF

1шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

L59716

PULLEY

- alternator

1шт.

5

A43384

FAN

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

A38492

BRACKET

- mount

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3-3/4"

4шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

15

A27328

SPACER

1шт.

16

A59098

STRAP

- adjusting

1шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

92-5

LOCK WASHER,5/16"

1шт.

19

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.
