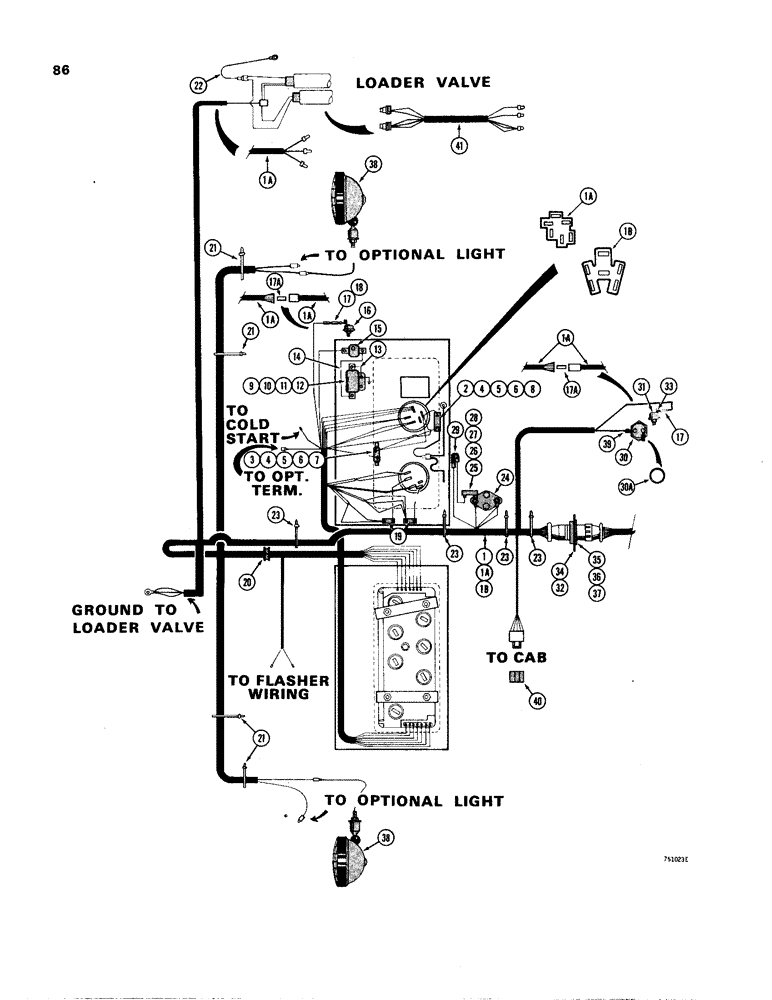

Запчасти Case W24B (086) - ELECTRICAL SYSTEM, FRONT HARNESS (04) - ELECTRICAL SYSTEMS

1

L59407

HARNESS

- electrical, has bonded resistors

1шт.

1a

L74451

HARNESS

- fuse style resistors, use L79366 harness and L36185 kit, Fig. 082.

1шт.

1b

L79366

HARNESS

- fuse style resistors, Includes: Ref. 2 and 3

1шт.

2

L59799

RESISTOR

- 15 ohm

1шт.

3

L57178

RESISTOR

- 39 ohm

1шт.

4

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

- flat head, #6 - 32 NC x 1/2"

2шт.

5

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

6

129-5

NUT,#6-32

2шт.

7

49833

CLAMP

- resistor

1шт.

8

L73415

CLAMP

- resistor

1шт.

9

L15056

BUZZER

- warning, air pressure

1шт.

10

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- flat head, 1/4" - 20 NC x 1/2"

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

13

A31060

ELECTRICAL WIRE

WIRE -, Serial Range: buzzer-ground

1шт.

14

A18457

ELECTRICAL WIRE

WIRE -, Serial Range: buzzer-switch

1шт.

15

L48480

SWITCH

- air pressure

1шт.

16

L57937

SWITCH

- air parking brake

1шт.

17

L58497

RESISTOR

- 40 ohm, used with L59407 harness

1шт.

17a

L73576

RESISTOR

- 40 ohm

2шт.

18

L58511

TERMINAL CONNECTOR

TERMINAL - resistor to wire harness

1шт.

19

L59970

BREAKER

- circuit, 5 amp

2шт.

20

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- split

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

1шт.

22

L50380

ELECTRICAL WIRE

WIRE - ground, valve to tractor frame, if used

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

4шт.

24

L47989

SWITCH

- stop light, double check valve

1шт.

25

L59040

RESISTOR

- stop light switch

1шт.

26

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- round head, #8 - 32 NC x 1/2"

1шт.

27

195-10

WASHER,#8

1шт.

28

129-6

NUT,#8-32

1шт.

29

L11760

DIODE

- stiplight switch protecting

1шт.

30

L77962

SWITCH

- neutral start, Includes: Ref. 30A

1шт.

30a

D80515

WASHER

GASKET - aluminum

1шт.

31

D65457

SWITCH

- clutch, pressure

1шт.

32

L58497

RESISTOR

- 40 ohm, used with L59407 harness

1шт.

33

L58511

TERMINAL CONNECTOR

TERMINAL - resistor

1шт.

34

L73819

BRACKET

- harness, if used

1шт.

35

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- round head, #6 - 32 NC x 1/2"

4шт.

36

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

37

129-15

NUT,#6-32

4шт.

38

L71729

LAMP

- flood, parts list Fig. 102

2шт.

39

L59682

TERMINAL CONNECTOR

TERMINAL - straight

1шт.

40

223-160

CONNECTOR, ELEC

PLUG - electrical, if used

1шт.

41

L77123

ELECTRICAL WIRE

HARNESS -, Serial Range: main-valve

1шт.

36184

SCREW

KIT - service option, before tractor sn 9126945

1шт.

L79234

KIT

- receptacle, rear harness

1шт.

L79235

KIT

- plug, front harness

1шт.

L78403

BRACKET

1шт.
