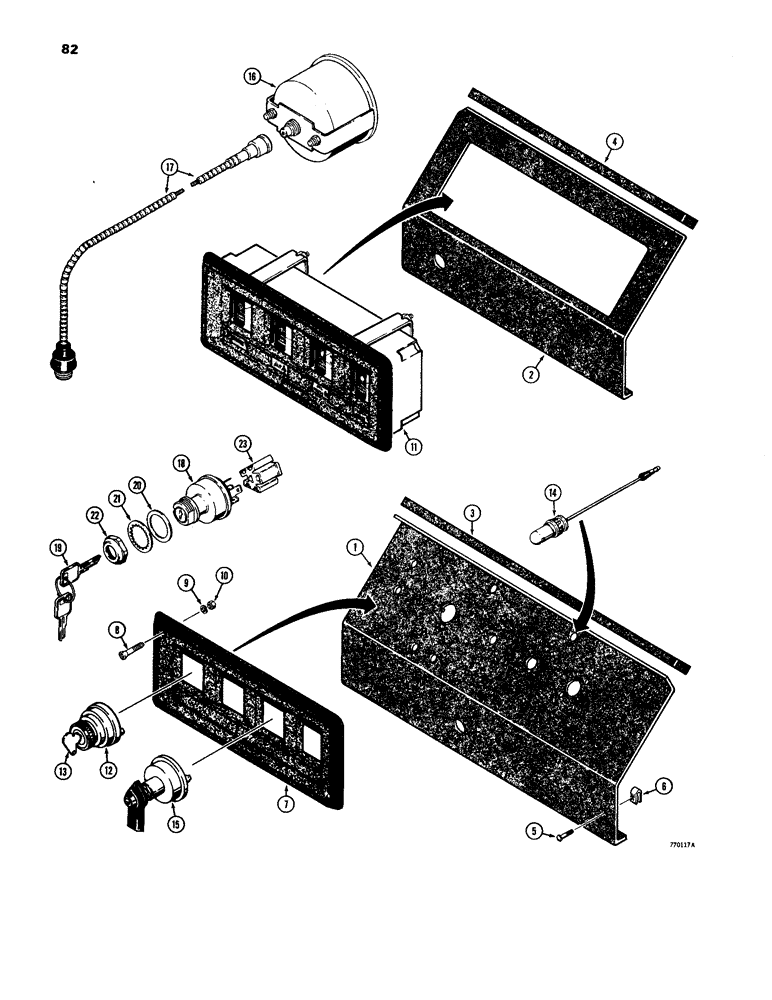

Запчасти Case W24B (082) - ELECTRICAL SYSTEM, INSTRUMENT PANELS AND TACHOMETER (04) - ELECTRICAL SYSTEMS

1

L79369

PANEL - instrument, RH

1шт.

2

L57001

PANEL

- instrument, LH

1шт.

3

L57916

STRIP

- filler, RH

1шт.

4

L57917

STRIP

- filler, LH

1шт.

5

77-412

SCREW

- truss head, 1/4" - 20 NC x 3/4"

8шт.

6

131-630

SPRING NUT,Tinn, U, 1/4"-20

- clip

8шт.

7

L55774

PANEL

- instrument mounting, RH

1шт.

8

164-215

HEX SOC SCREW,#6 - 32 x 3/4", SST

SCREW - flat head hex socket, #6 - 32 NC x 3/4" stainless

4шт.

9

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

4шт.

10

129-15

NUT,#6-32

4шт.

11

L55650

CLUSTER

- LH, parts list Fig. 084

1шт.

12

L55655

SWITCH

- ignition, use L36185 kit, Includes: Ref. 13

1шт.

13

D36822

KEY

S - ignition, use L36185 kit

1шт.

14

L55568

INTERIOR LIGHT

LIGHT - instrument panel, parts list Fig. 102

2шт.

15

L55654

SWITCH

- light

1шт.

16

A11190

TACHOMETER

AND HOURMETER

1шт.

17

A24101

CABLE

1шт.

L36185

SWITCH

KIT - ignition switch, Includes: Ref. 18 - 23

1шт.

18

A77312

SWITCH

- ignition

1шт.

19

A77313

SET OF 2 KEYS

KEY

1шт.

20

L31557

WASHER

- flat

1шт.

21

193-37

LOCK WASHER,Int Tooth, 1"

WASHER, LOCK, Int Tooth, 1"

1шт.

22

A77314

NUT

- hex

1шт.

23

L79667

CONNECTOR, ELEC

CONNECTOR - 6 pole electrical

1шт.
