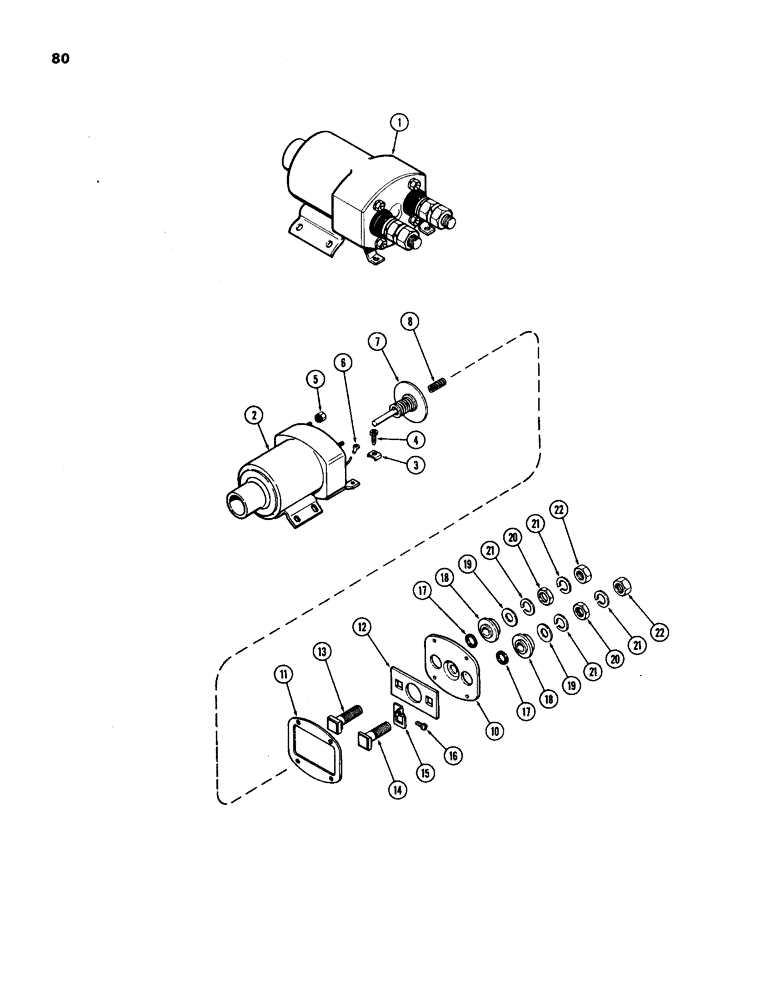

Запчасти Case W24B (080) - A42376 SOLENOID (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSY - (Delco-Remy #1119848-B), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE

1шт.

3

A42407

CLAMP

CLIP - terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

5

D32500

NUT

- plate to case studs (with skpf. washer)

4шт.

6

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.

7

D32498

CONTACT

DISC ASSY - contact

1шт.

8

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSY, Includes: Ref. 10 - 22

1шт.

10

A42410

PLATE

- terminals & case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

A42413

STUD

- battery terminal (1-21/32" thread length)

1шт.

14

D32506

STUD

- starter terminal (1-3/16" thread length)

1шт.

15

A42406

SUPPORT

TERMINAL - coil lead

1шт.

16

175-56

SCREW - coil lead (#6-32 x 3/16" truss head) Slotted Truss Hd, #6-32 x 3/16"

1шт.

17

D32510

BUSHING

- terminal plate insulators

2шт.

18

A43701

BUSHING

- terminal studs insulating

2шт.

19

D30004

WASHER

- terminal studs (1/2 x 1-3/16 x 3/32" insulation)

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - terminal studs ( lock) 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.
