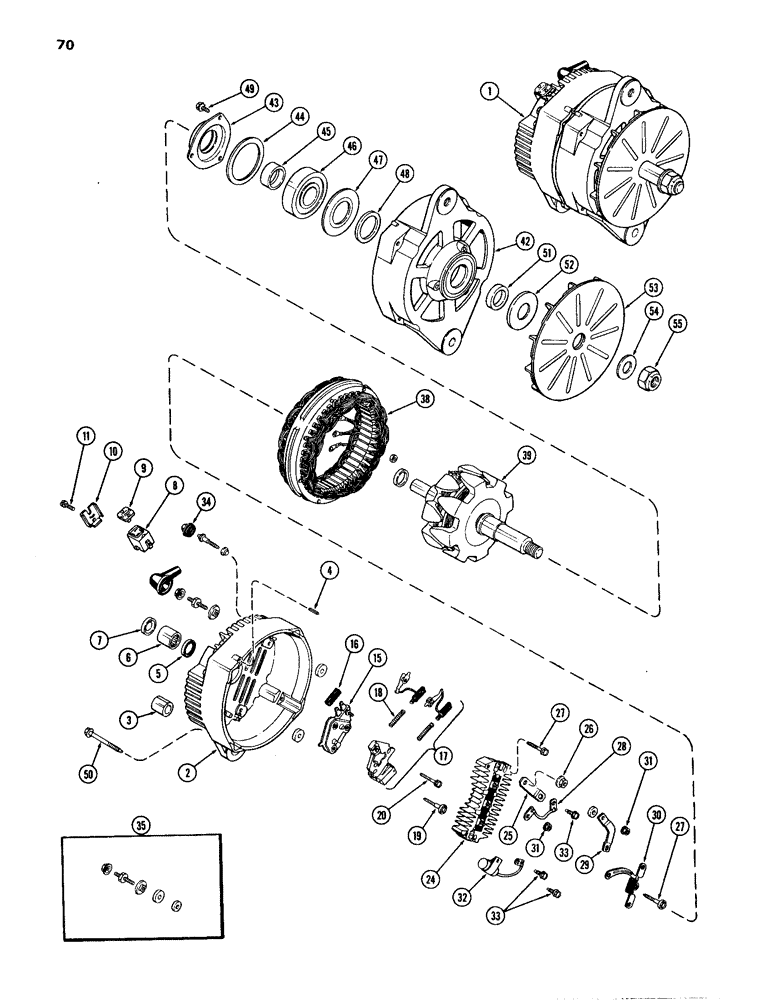

Запчасти Case W24B (070) - L72955 ALTERNATOR, 65 AMP - 24 VOLT (04) - ELECTRICAL SYSTEMS

1

L72955

ALTERNATOR

ALTERNATOR ASSY - (Delco-Remy #1100077) (Without pulley), Includes: Ref. 2 - 55

1шт.

1

197231A1R

REMAN-ALTERNATOR

W24B CASE ARTICULATED WHEEL LOADER W/POD CAB (S/N 9120696 & AFTER), ALTERNATOR ASSY, Reman for New PN L72955

1шт.

1

197231A1C

CORE-ALTERNATOR

Return Number

1шт.

1

87454652

REMAN-ALTERNATOR

65A; For N.A. only

1шт.

1

87454653

CORE-ALTERNATOR

Return number - For N.A. only

1шт.

2

A45555

FUNNEL

FRAME FRAME - slip ring end

1шт.

3

A45559

BUSHING

BUSHING - mounting hinge

1шт.

4

138-2012

PIN,1/8" x 1/2", Coiled

PIN, , Locating, slip ring frame 1/8" x 1/2", Coiled

1шт.

5

A43693

SEAL

SEAL - oil, slip ring frame

1шт.

6

A43679

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.933"

BEARING - needle, slip ring end

1шт.

7

A43697

PLUG

PLUG - grease, bearing cover

1шт.

8

A45541

CONNECTOR, ELEC

CONNECTOR CONNECTOR - voltage adjustment

1шт.

9

A45540

CAP

CAP - voltage adjuster connector

1шт.

10

A45379

SPECIAL WASHER

BRACKET - connector retaining

1шт.

11

169-78

SCREW,Sl Fil Hd, #8 - 32 x 9/16"

SPARE PART SCREW - connector (#10-32 x 9/16" fillister head)

1шт.

15

A45372

REGULATOR

REGULATOR - voltage

1шт.

16

A45537

INSULATOR

INSULATOR - voltage regulator

1шт.

17

A45222

BRUSH, COMMUTATOR

BRUSH HOLDER ASSY - with brushes

1шт.

18

A43678

SPRING

SPRING - brush tension

2шт.

19

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder (Insulator)

2шт.

20

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - brush holder (Grounded)

1шт.

24

A45557

RECTIFIER

RECTIFIER ASSY - bridge

1шт.

25

A45543

CONNECTOR, ELEC

SPARE PART CONNECTOR - battery terminal to rectifier bridge

1шт.

26

A45368

NUT

NUT- regulator stud

1шт.

27

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge

2шт.

28

A45369

ELECTRICAL WIRE

WIRE LEAD - terminal, Serial Range: stud-rectifier

1шт.

29

A45552

ROD, CONNECTING

CONNECTOR - relay, Serial Range: terminal-rectifier

1шт.

30

A45546

DIODE

DIODE - trio

1шт.

31

129-6

NUT,#8-32

NUT, , Rectifier studs #8-32

2шт.

32

A45226

CAPACITOR

CAPACITOR ASSY - with bracket

1шт.

33

A45225

MULTIPOLE CONNECTOR

SCREW - capacitor and lead

3шт.

34

A45562

CAP

CAP - relay terminal cover (Rubber)

1шт.

35

A45549

TERMINAL CONNECTOR

PACKAGE - terminal, battery

1шт.

38

A45544

STATOR

STATOR ASSY

1шт.

39

A45556

IMPELLER

ROTOR ASSY

1шт.

42

A45553

FRAME

FRAME - drive end

1шт.

43

A25986

LARGE PLATE

PLATE, LARGE RETAINER - bearing

1шт.

44

A42135

WASHER

WASHER - bearing retainer (Felt)

1шт.

45

A43684

COLLAR

COLLAR - inside

1шт.

46

A43680

BALL BEARING,0.9843" ID x 2.4409" OD x 0.6693"

BEARING - drive end

1шт.

47

A25988

RETAINER

PLATE - bearing

1шт.

48

A25987

GASKET

SPARE PART GASKET - bearing plate

1шт.

49

163-18

SCREW,Hex, #10 - 24 x 3/8"

SCREW - bearing retainer to Drive End frame

3шт.

50

A45542

FLANGE BOLT

BOLT - thru

4шт.

51

A43685

COLLAR

COLLAR - outside

1шт.

52

A45560

SHIELD

SHIELD - dust

1шт.

53

A45561

FAN

FAN

1шт.

54

A40792

WASHER

WASHER - fan and pulley

1шт.

55

A25995

NUT

NUT - fan and pulley retaining

1шт.
