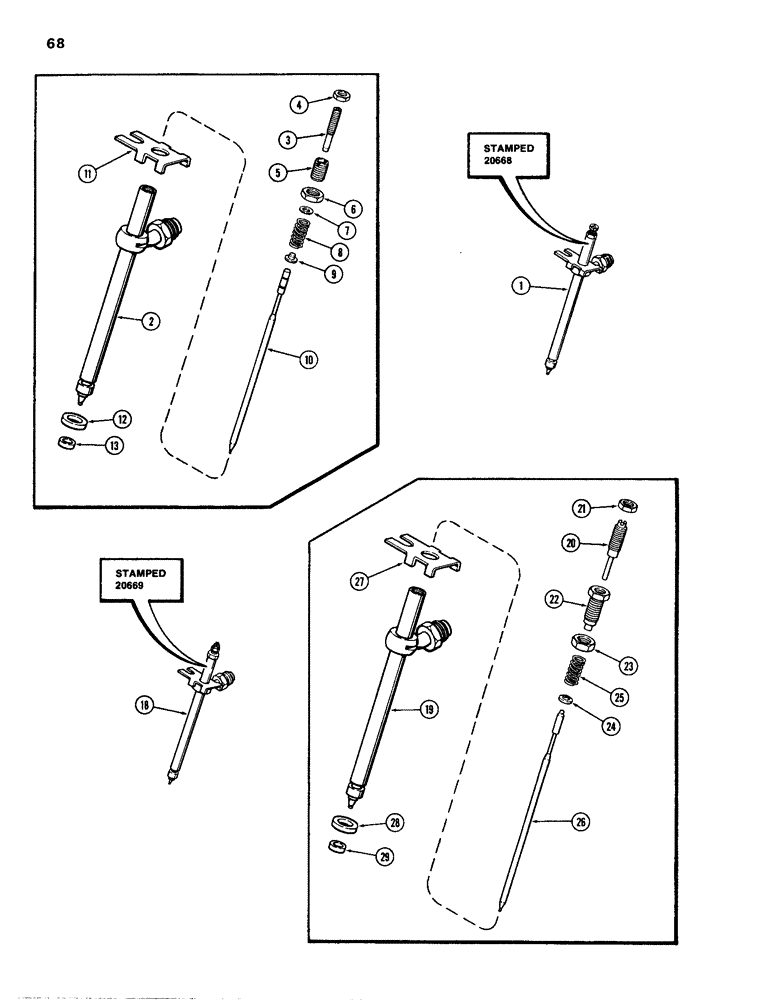

Запчасти Case W24B (068) - INJECTION NOZZLES, FOR ALTITUDE COMPENSATING ENGINES (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSY - injector, (Stamped 20668 on body) (Red color code), Includes: Ref. 19 - 29

6шт.

Whenever a nozzle is removed from head A41403 washer & A41402 seal must be replaced before nozzle is installed back in head

1шт.

A138322R

REMAN-INJECT NOZZLE

W24B W/POD CAB (S/N 9120696 & AFTER)

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45632

SHIM

SEAT - pressure spring, upper (Replaces A45291)

1шт.

8

A45290

SPRING

- pressure adjusting (11/16" free length with green color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

18

A140830

INJECTOR ASSY.

NOZZLE ASSY - injector, (stamped 20669 on body) (blue and yellow color code), for naturally aspirated engines, Includes: Ref. 19 - 29

6шт.

Whenever a nozzle is removed from head A41403 washer & A41402 seal must be replaced before nozzle is installed back in head

1шт.

A140830R

REMAN-INJECT NOZZLE

W24B (S/N 9120696 & AFTER)

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - nozzle, for naturally aspirated engines

1шт.

20

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, for naturally aspirated engines

1шт.

21

A43602

NUT

- lock, lift adjusting screw, for naturally aspirated engines

1шт.

22

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, for naturally aspirated engines

1шт.

23

A42424

LOCK NUT

- lock, pressure adjusting screw, for naturally aspirated engines

1шт.

24

A44369

SEAT

- pressure adjusting spring, for naturally aspirated engines

1шт.

25

A43733

SPRING

- pressure adjusting (9/16" free length with red color code), for naturally aspirated engines

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - nozzle, for naturally aspirated engines

1шт.

27

A41768

PLATE

D - nozzle locating, for naturally aspirated engines

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, for naturally aspirated engines

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, for naturally aspirated engines

1шт.
