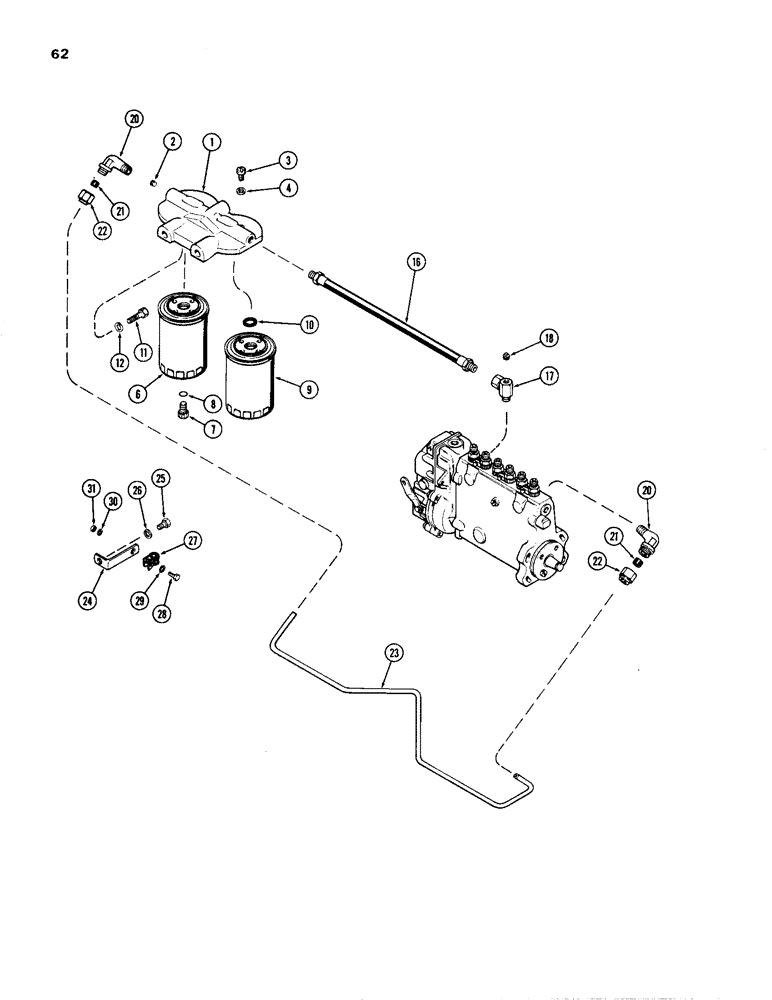

Запчасти Case W24B (062) - FUEL FILTER SYSTEM, (504BD) AND (504BDT) DIESEL ENGINES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A62339
HEAD
ASSY - filter ( replaced A62239), Includes: Ref. 2
1шт.
2
221-1849
PLUG
- 1/8" PT, socket hex head
1шт.
3
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- air bleed (#10-32 x 5/16" slotted round head)
2шт.
4
A146368
WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk
- bleed screw (3/16 x 5/16 x 3/64" aluminum)
2шт.
CASA41745
FUEL FILTER
ELEMENT KIT - filters, Includes: Ref. 6 - 10
1шт.
6
NSS
NOT SOLD SEPARAT
FILTER ASSY - first stage, Includes: Ref. 7 and 8
1шт.
7
G49080
PLUG
- filter drain (3/8" - 24, 12 point head)
1шт.
8
A28090
O-RING,0.301" ID x 0.441" OD x 0.07"
-011, 70 Duro, .301" ID x .070" Thk - Plug
1шт.
9
NSS
NOT SOLD SEPARAT
FILTER ASSY - second stage, Includes: Ref. 10
1шт.
10
A42315
GASKET
-, Serial Range: filter-head
1шт.
11
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Filter mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
12
92-6
LOCK WASHER,3/8"
2шт.
16
A65564
HOSE,9.53mm ID x 390.65mm L, SAE 100R6
- filter to pump, 16" long
1шт.
17
A20539
FITTING
UNION - hose (at pump)
1шт.
18
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - union (1/8" PT, square head)
1шт.
20
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSY - filter tube
2шт.
21
222-103
SLEEVE,5/16" Tube
1шт.
22
222-113
TUBE NUT,9/16"-24
NUT - for 5/16" tube
1шт.
23
A62342
TUBE
- pump to first stage filter
1шт.
24
A64856
BRACKET
- tube support
1шт.
25
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
Bracket to block Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
26
92-6
LOCK WASHER,3/8"
1шт.
27
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP - tube retaining
1шт.
28
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd
1шт.
29
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER - 1/4" internal-external shakeproof
1шт.
30
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
31
25-104
NUT,1/4"-20, G5
1шт.
Выбрано товаров: 27
