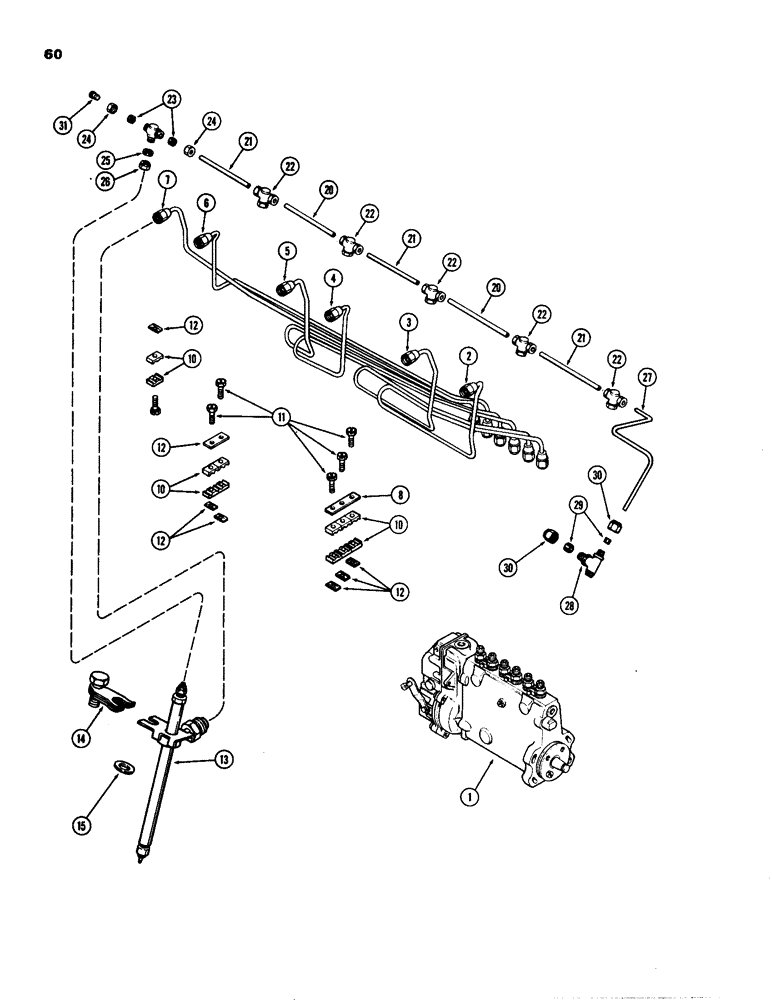

Запчасти Case W24B (060) - FUEL INJECTION SYSTEM, (504BD) AND (504BDT) DIESEL ENGINES (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY - injection (See Figure 66)

1шт.

2

A58702

TUBE

- injection (No. 1 cylinder)

1шт.

3

A58703

TUBE

- injection (No. 2 cylinder)

1шт.

4

A58704

TUBE

- injection (No. 3 cylinder)

1шт.

5

A58705

TUBE

- injection (No. 4 cylinder)

1шт.

6

A58706

TUBE

- injection (No. 5 cylinder)

1шт.

7

A58707

TUBE

- injection (No. 6 cylinder)

1шт.

8

A58708

PLATE

- injection tube bracket (For 3 tubes)

1шт.

9

A58710

PLATE

- injection tube bracket (For 2 tubes)

1шт.

10

A58709

BRACKET

PLATE - injection tube bracket (For 1 tube)

14шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" NC, slotted hex head

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

7шт.

13

REF

INSTRUCTION

NOZZLE ASSY - injector (See Figure 68)

6шт.

14

A58695

CLAMP

ASSY - nozzle hold down

6шт.

15

A58696

SPACER

- nozzle clamp

6шт.

20

A58964

TUBE

- fuel leak-off, 5-5/8" long

2шт.

21

A58965

TUBE

- fuel leak-off, 4-5/8" long

3шт.

22

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - junction, fuel leak-off lines

6шт.

23

222-102

SLEEVE,1/4" Tube

12шт.

24

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

25

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injector nozzle (at leak-off tee)

6шт.

26

A58961

NUT

- injector nozzle (at leak-off tube)

6шт.

27

A58963

TUBE

- fuel leak-off (No. 1, Serial Range: nozzle-pump)

1шт.

28

A59097

VALVE

TEE ASSY - check valve (One way valve), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - junction tee

1шт.
