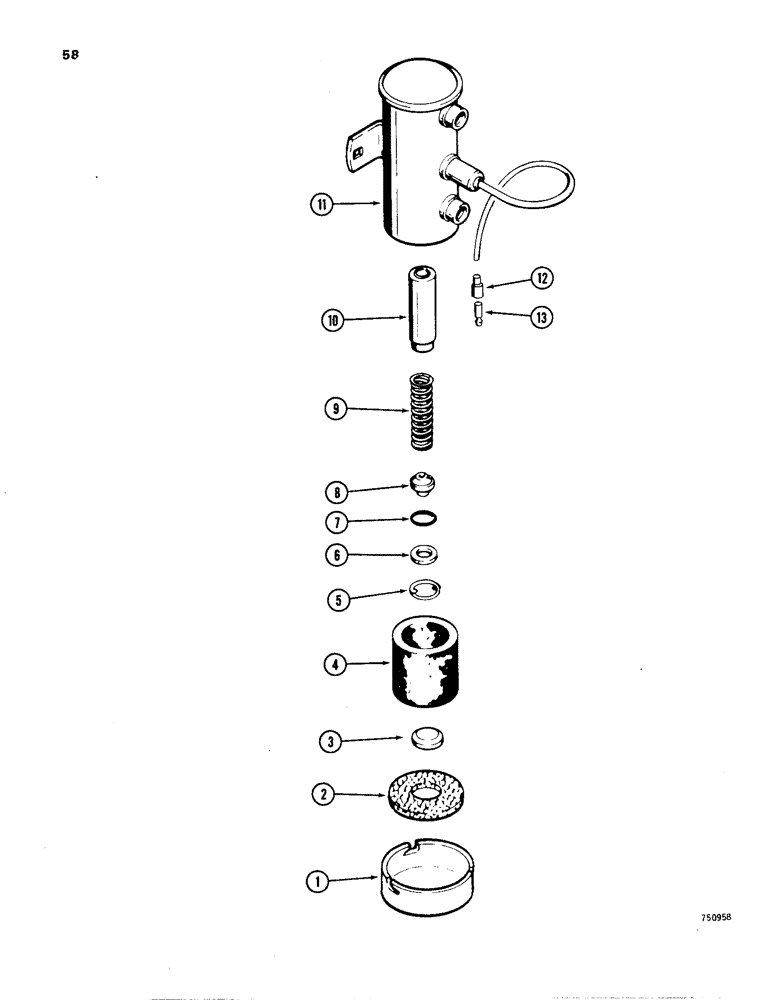

Запчасти Case W24B (058) - L52634 FUEL PUMP (03) - FUEL SYSTEM

L52634

PUMP

- fuel transfer, Includes: Ref. 1 - 11

1шт.

1

A40312

COVER

- fuel pump

1шт.

2

A40315

GASKET

- cover

1шт.

3

A40311

MAGNET

- plunger

1шт.

4

L33210

FILTER SCREEN

SCREEN - filtering

1шт.

5

A40316

RETAINER

- O-ring

1шт.

6

A40317

WASHER

- special, retainer

1шт.

7

A40318

O-RING,0.429" ID x 0.106"

1шт.

8

A40313

CUP

VALVE - cup

1шт.

9

L35316

SPRING

- plunger

1шт.

10

A40310

PLUNGER

- fuel pump

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - pump, fuel transfer

1шт.

12

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulation

1шт.

13

L11778

CONNECTOR, ELEC

CONNECTOR - male, bullet

1шт.
