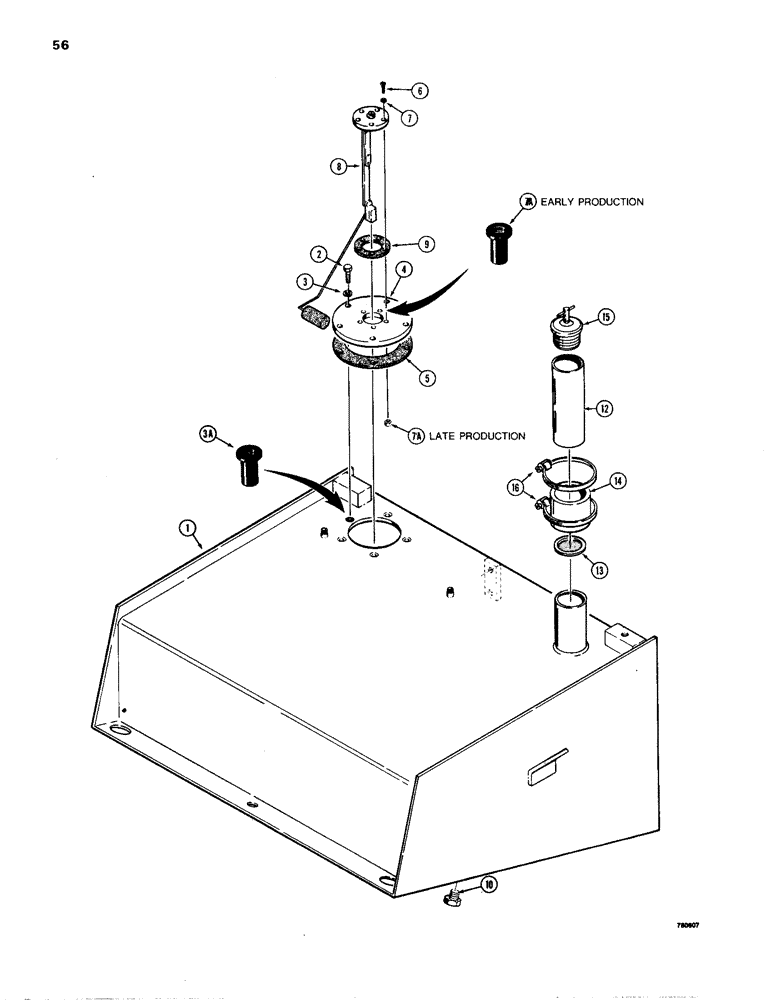

Запчасти Case W24B (056) - FUEL TANK AND SENDING UNIT, LATE PRODUCTION (03) - FUEL SYSTEM

L77661

TANK

ASSEMBLY - fuel, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

3a

L13176

NUT

RIVNUT

5шт.

4

L77441

PLATE

ASSEMBLY - hand hole cover

1шт.

5

L79876

GASKET,4.57mm Thk

- hand hole cover

1шт.

6

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- #10 - 24 NC x 3/4"

5шт.

7

L77590

WASHER

- special

5шт.

7a

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

8

L57177

TRANSMITTER

SENDING UNIT - 90 ohms stamped on housing

1шт.

(Ohms no longer stamped on the housing)

1шт.

9

A11822

GASKET

- fuel sending unit

1шт.

10

221-844

PLUG,Hex Soc, 1/2"-14

- square socket head, 1/2" NPT

1шт.

12

L77663

PIPE

- filler extension

1шт.

13

L77059

STRAINER ASSY.

STRAINER - fuel

1шт.

14

L71051

HOSE,76.2 mm ID x 88.90 mm

1шт.

15

L74383

CYLINDER END CAP

CAP - fuel tank

1шт.

(For 2.5" I.D. hole)

1шт.

16

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - worm screw

2шт.

L77661

TANK

ASSEMBLY - fuel, early production, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel, early production

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Early production Hex, 1/4"-20 x 1", G5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Early production 1/4"

5шт.

3a

L13176

NUT

RIVNUT, early production

5шт.

4

L16433

PLATE ASSEMBLY - hand hole cover, early production

1шт.

5

L79876

GASKET,4.57mm Thk

- hand hole cover, early production

1шт.

6

173-240

SCREW - #10 - 32 NF x 3/4", early production

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7a

L13194

NUT

RIVNUT - #10 - 24 NC, early production

5шт.

8

L57177

TRANSMITTER

SENDING UNIT - 90 ohms stamped on housing, early production

1шт.

9

A11822

GASKET

- fuel sending unit, early production

1шт.

10

221-844

PLUG,Hex Soc, 1/2"-14

- square socket head, 1/2" NPT, early production

1шт.

12

L77663

PIPE

- filler extension, early production

1шт.

13

L77059

STRAINER ASSY.

STRAINER - fuel, early production

1шт.

14

L71051

HOSE,76.2 mm ID x 88.90 mm

Early Production 76.2 mm ID x 88.90 mm

1шт.

15

L74383

CYLINDER END CAP

CAP - fuel tank, early production

1шт.

16

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - worm screw, early production

2шт.
