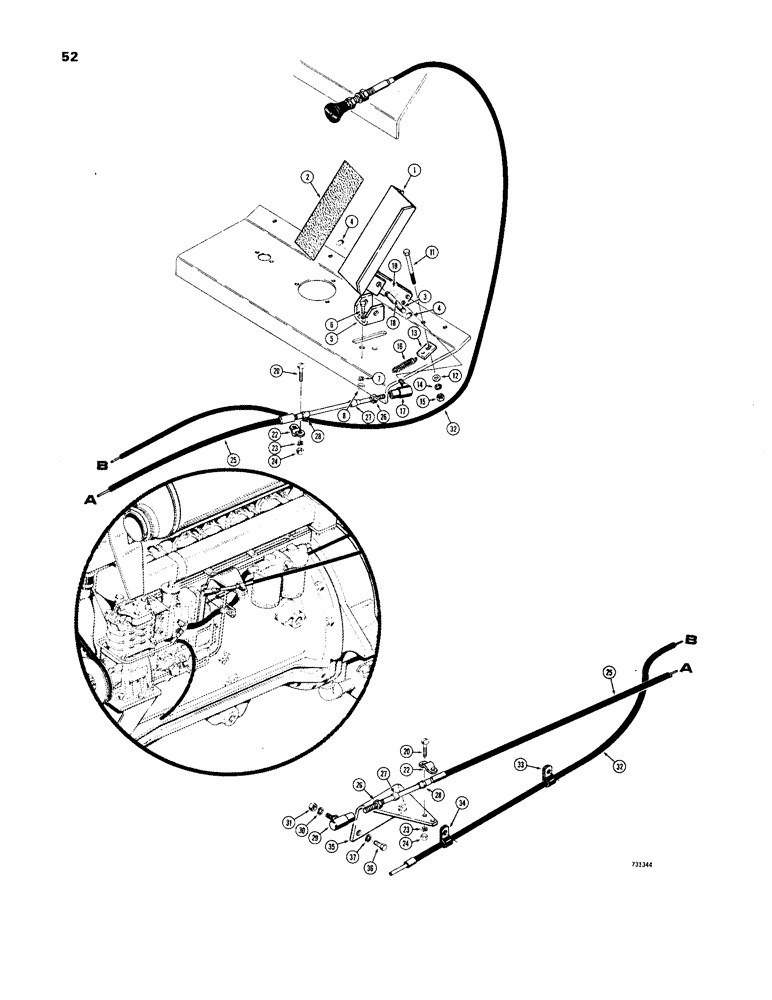

Запчасти Case W24B (052) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L48004

PEDAL

- accelerator

1шт.

2

L48674

PAD

- accelerator

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- snap

2шт.

5

L48002

BRACKET

BLOCK - accelerator pedal mounting

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

10

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

11

113-256

BOLT

HHCS - 3/8" - 16 NC x 5-1/2"

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

L51684

PLATE

- throttle return spring

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- hx, 3/8" - 16 NC

1шт.

16

L48104

SPRING

- return, accelerator

1шт.

17

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, accelerator linkage

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

129-37

NUT,#10-32

1шт.

20

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head, #10 - 32 NF x 3/4"

4шт.

21

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

22

L12441

CLAMP

- accelerator cable

2шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

24

129-37

NUT,#10-32

4шт.

L51686

CABLE

ASSEMBLY - accelerator, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

CABLE - accelerator

1шт.

26

129-660

NUT,#10-32, Brass

2шт.

27

L32849

SEAL ASSY.

SEAL - small, near nut end

2шт.

28

L32690

SEAL

SEAL - large, near sheath end

2шт.

29

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, at fuel injection pump

1шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

129-37

NUT,#10-32

1шт.

32

L44335

CABLE

ASSEMBLY - fuel shutoff

1шт.

33

49851

SHIELD

- cable, shutoff

2шт.

34

49845

CLAMP

- cable, shutoff

1шт.

35

L56242

FILTER CARTRIDGE

BRACKET - mounting

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.
