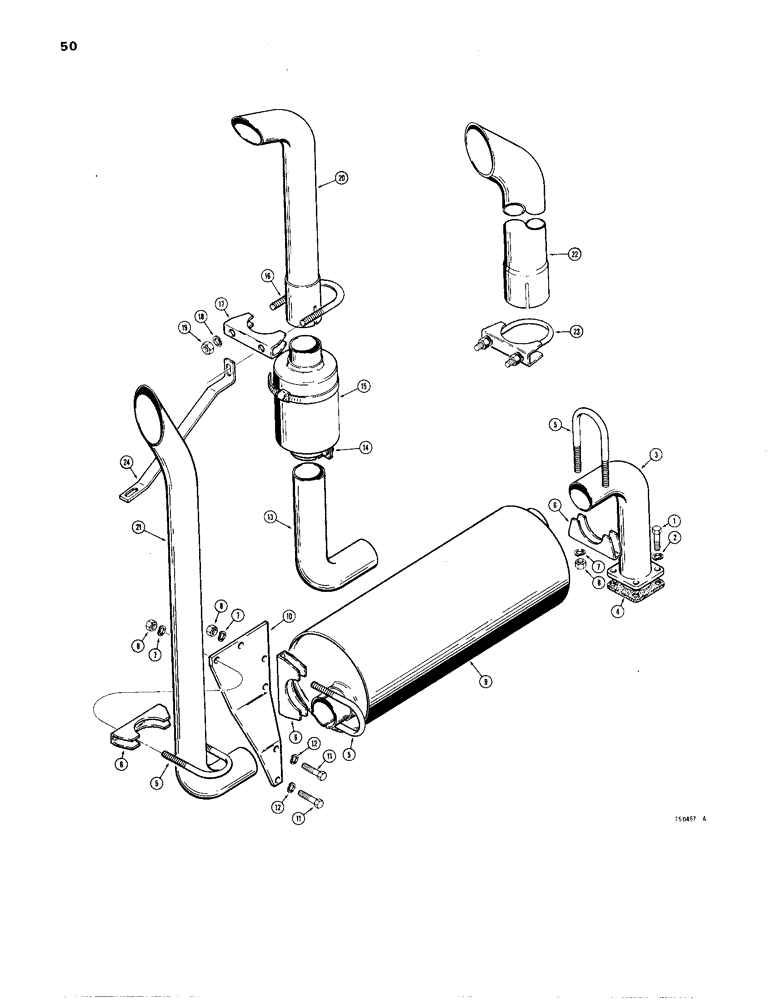

Запчасти Case W24B (050) - EXHAUST SYSTEM (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L14207

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

L73711

CLAMP

ASSEMBLY, Includes: Ref. 5 - 8

3шт.

5

NSS

NOT SOLD SEPARAT

"U" BOLT - muffler clamping

1шт.

6

NSS

NOT SOLD SEPARAT

SADDLE - muffler clamping

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

9

L14219

MUFFLER

- engine exhaust

1шт.

10

L48021

SUPPORT

BRACKET - muffler mounting

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

L47988

PIPE, EXHAUST SYSTEM

STACK

1шт.

Same part number. see earlier cat. for correct number. C1216

1шт.

L41692

ARRESTER

SPARK ARRESTER ASSEMBLY, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

15

NSS

NOT SOLD SEPARAT

SPARK ARRESTER

1шт.

L73711

CLAMP

ASSEMBLY, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

"U" BOLT - muffler clamping

1шт.

17

NSS

NOT SOLD SEPARAT

SADDLE - muffler clamping

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

20

L18424

PIPE

STACK - engine exhaust, used on models with spark arrester

1шт.

21

L17152

TUBE,2.975" OD

STACK - exhaust, 19" (483 mm) high, standard on models without spark arrester

1шт.

Same part number. see earlier cat. for correct number. C1216

1шт.

21

L47988

PIPE, EXHAUST SYSTEM

STACK - exhaust, 41" (1041 mm) high, service option on models without spark arrester

1шт.

22

L57758

MUFFLER

STACK - exhaust, turbocharged models

1шт.

23

A17851

CLAMP

ASSEMBLY - stack, includes hardware

1шт.

24

L41696

BRACE - spark arrester

1шт.
