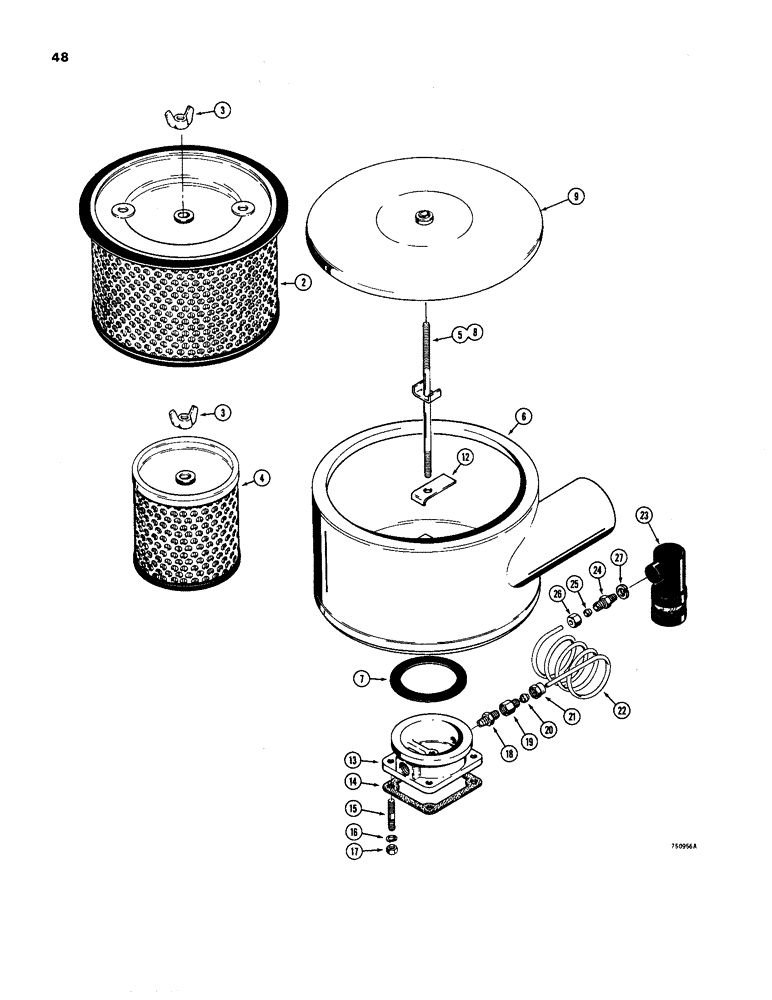

Запчасти Case W24B (048) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

L54055

CLEANER

AIR CLEANER ASSEMBLY - dry type, outer filter top serves as rain cover, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

2

A43734

AIR CLEANER

ELEMENT - filter, outer

1шт.

3

129-549

WING NUT,Locking, 3/8"-16

NUT - wing

2шт.

4

A43735

AIR CLEANER

ELEMENT - filter, inner

1шт.

5

L35485

BOLT

- special, non-turbocharged models

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

A43736

GASKET

- air cleaner

1шт.

8

D76943

ROD

BOLT - special, turbocharged models

1шт.

(11.44" long)

1шт.

9

L35985

COVER ASSY

COVER - air cleaner

1шт.

10

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

11

NSS

NOT SOLD SEPARAT

RESERVED

1шт.

12

L53838

LOCK ASSY

LOCK - tab

1шт.

13

L53209

ADAPTER

- air cleaner to intake manifold

1шт.

14

A58910

GASKET

- adapter to intake manifold

1шт.

15

L13023

STUD

- special, 3/8" - 16 NC

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

D36264

FITTING

- special

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ASSEMBLY, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

BODY

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

NUT

1шт.

22

D35275

TUBE

- plastic, 28-3/4" (73 mm) long

1шт.

23

A17652

ELECTRICAL GAUGE

INDICATOR - air cleaner filter restriction

1шт.

22-5104

FITTING ASSEMBLY, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.

25

222-650

SLEEVE,1/8" Tube, Comp

1шт.

26

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

(replaced 222-50 ) 5/16"-24, 45º Fl, Comp

1шт.

27

92-7

LOCK WASHER,7/16"

1шт.
