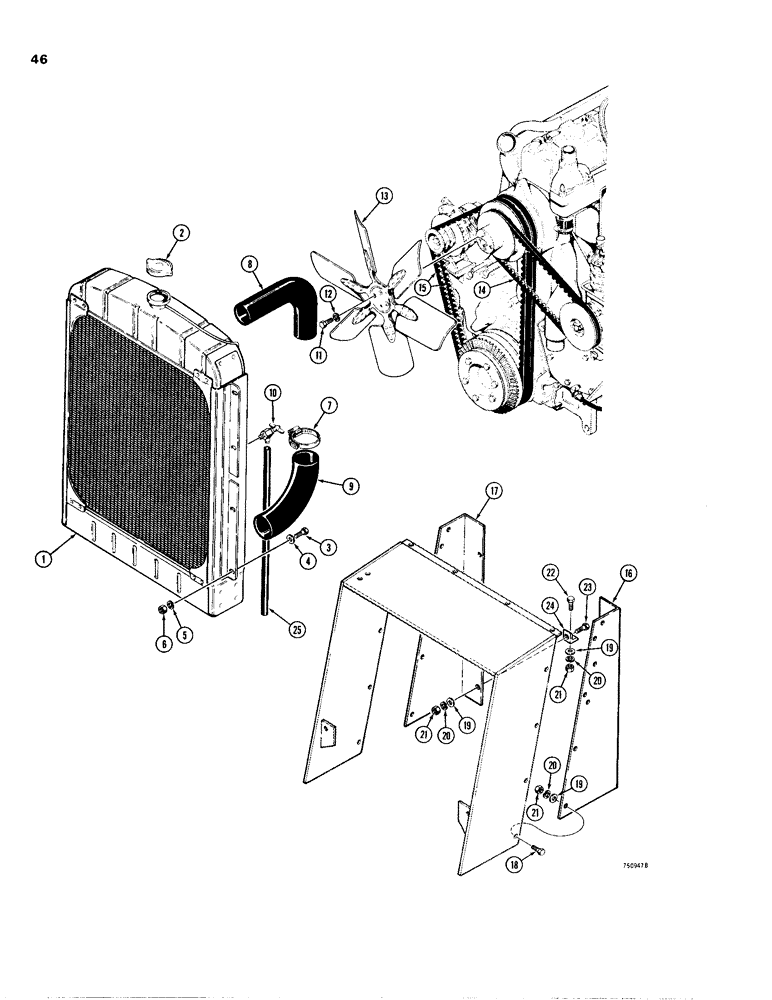

Запчасти Case W24B (046) - RADIATOR FAN AND FAN BELTS (02) - ENGINE

1

L15781

RADIATOR

- cooling

1шт.

2

D25826

CAP

- radiator

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

4

195-26

WASHER

WASHER - flat, 3/8"

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

8

L15867

RADIATOR HOSE,2.50" ID x 10.50", SAE 20R4 Class SC

Upper 2.50" ID x 10.50", SAE 20R4 Class SC

1шт.

9

L15866

RADIATOR HOSE,2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

Lower 2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

1шт.

10

A27862

COCK, DRAIN

VALVE - radiator drain

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A15520

FAN

- radiator cooling

1шт.

14

L57802

V-BELT,12.70" W

- Compressor

1шт.

15

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Alternator drive 0.69" W x 65.75" L

1шт.

16

L16230

BRACKET

- radiator mounting, RH

1шт.

17

L74230

BRACKET

- radiator mounting, LH

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

19

195-26

WASHER

WASHER - flat, 3/8"

12шт.

20

92-6

LOCK WASHER,3/8"

16шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

16шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

L19662

ANGLE

BRACKET - angle type

2шт.

25

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

D83221

TANK

bottom, oil cooler, adopted as a component

1шт.
