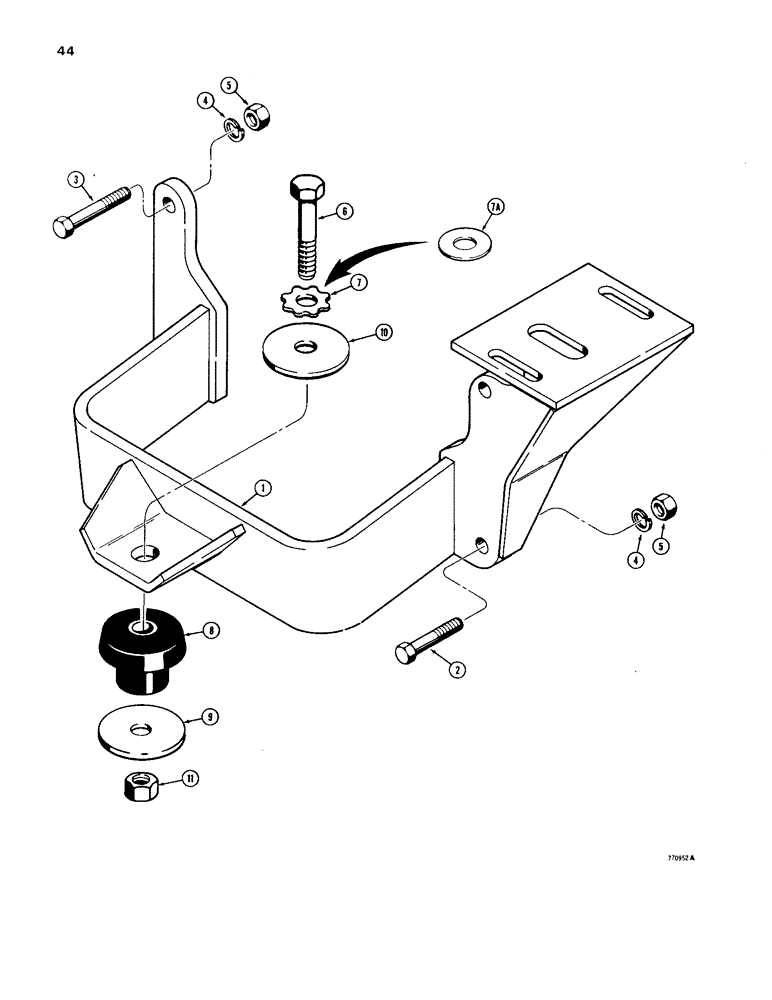

Запчасти Case W24B (044) - ENGINE MOUNTS (02) - ENGINE

1

L76732

SUPPORT

BRACKET - engine mount

1шт.

2

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

3

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

5

25-1012

NUT,3/4"-10, G5

4шт.

6

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

7

L74506

WASHER

- hardened, if used

1шт.

7a

L79179

WASHER

- hardened, if used

1шт.

8

A19066

MOUNTING PARTS

CUSHION - rubber

1шт.

9

S19068

WASHER - special

1шт.

10

A61406

WASHER

- special

1шт.

11

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self lock, 314" - 10 NC

1шт.
