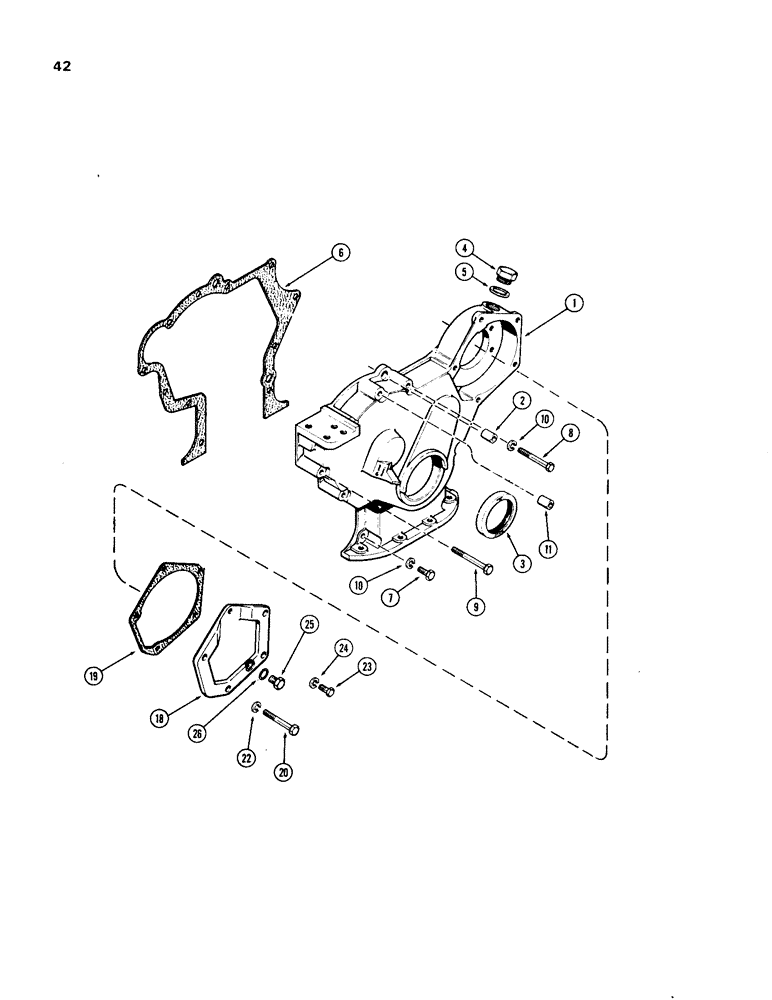

Запчасти Case W24B (042) - TIMING GEAR COVER, (504BD) AND (504BDT) DIESEL ENGINES (02) - ENGINE

1

A58609

COVER

ASSY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating, 3/8 x 5/8 x 1"

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front, 2-5/8 x 3-5/8 x 1/2"

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug

1шт.

6

A58612

GASKET

- timing, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Grade 5)

1шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point (3/8" pipe x 1")

1шт.

18

A62832

COVER

- injection pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

A151921

BOLT

- 3/8 x 1-1/4" NC hex (head drilled for anti-tamper wire)

2шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Grade 5)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 25 Hex Hd, 7/16"-20 ORB

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 3/8 x 1/2 x 1/16"

1шт.
