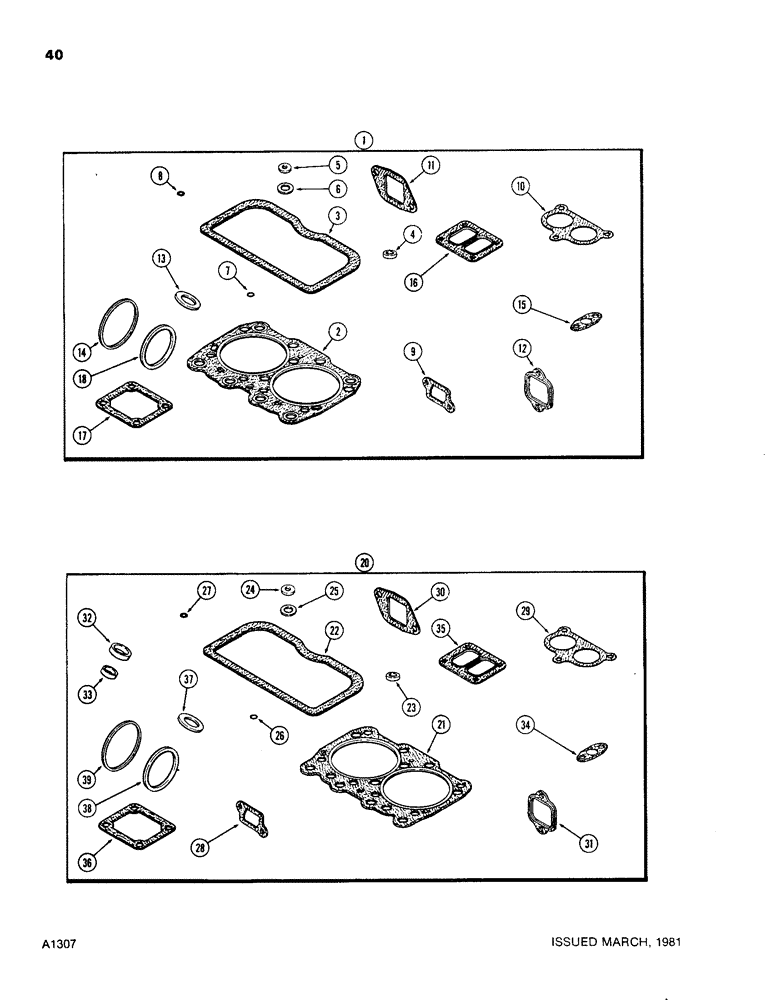

Запчасти Case W24B (040) - ENG GASKET KITS, 504BD & 504BDT DIESEL ENG VALVE GRIND KIT USE W/5.189"-5.194" FIRE DAM DIA. SLEEVE (02) - ENGINE

1

A151404

GASKET

KIT - valve grind, Includes: Ref. 1 - 18

1шт.

For complete engine overhaul order 1-A151404, 1-A44075 and A152479

1шт.

2

A138397

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

3шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A23684

GASKET

GASKET - cover studs

6шт.

5

A34133

GASKET

- breather tube bolt

3шт.

6

A68635

GASKET - breather, Serial Range: tube-cover

3шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube

3шт.

8

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

9

A58637

MANIFOLD GASKET

- water manifold

3шт.

10

A58639

GASKET

- thermostat housing

1шт.

11

A58662

MANIFOLD GASKET

- intake manifold

6шт.

12

A140252

MANIFOLD GASKET

- exhaust manifold (metal faced) (Replaces A58895)

6шт.

13

1342829C1

GASKET

WASHER - injection nozzle; Replaces A76640

6шт.

14

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

15

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

2шт.

17

A58910

GASKET

- air intake elbow

1шт.

18

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

20

A151406

GASKET

KIT - valve grind, use with 5.092" to 5.097" fire dam diameter sleeve, Includes: Ref. 21 - 39

1шт.

For complete engine overhaul order 1-A151406, 1-A44075 and A152479

1шт.

21

A142481

GASKET

- cylinder head, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

22

A65734

CYLINDER HEAD GASKET

- cylinder head cover, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

23

A23684

GASKET

GASKET - cover studs (rubber), use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

24

A34133

GASKET

- breather tube (fiber), use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

25

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

26

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- rocker shaft oil tube, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake and exhaust valve stems, use with 5.092" to 5.097" fire dam diameter sleeve

12шт.

28

A58637

MANIFOLD GASKET

- water manifold, use with 5.092" to 5.097" fire dam diameter sleeve

3шт.

29

A58639

GASKET

- thermostat housing, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

30

A58662

MANIFOLD GASKET

- intake manifold, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

31

A140252

MANIFOLD GASKET

- exhaust manifold (metal faced)(Replaces A58895), use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

32

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

33

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve

6шт.

34

A58892

GASKET,1.59mm Thk

- turbocharger oil drain tube, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

35

A58899

GASKET,0.45mm Thk

- turbocharger, use with 5.092" to 5.097" fire dam diameter sleeve

2шт.

36

A58910

GASKET

- air intake elbow, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

37

1342829C1

GASKET

- injection nozzle, use with 5.092" to 5.097" fire dam diameter sleeve; Replaces A76640

6шт.

38

A138817

RING,2.64mm Thk

SEAL - turbocharger, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.

39

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust, use with 5.092" to 5.097" fire dam diameter sleeve

1шт.
