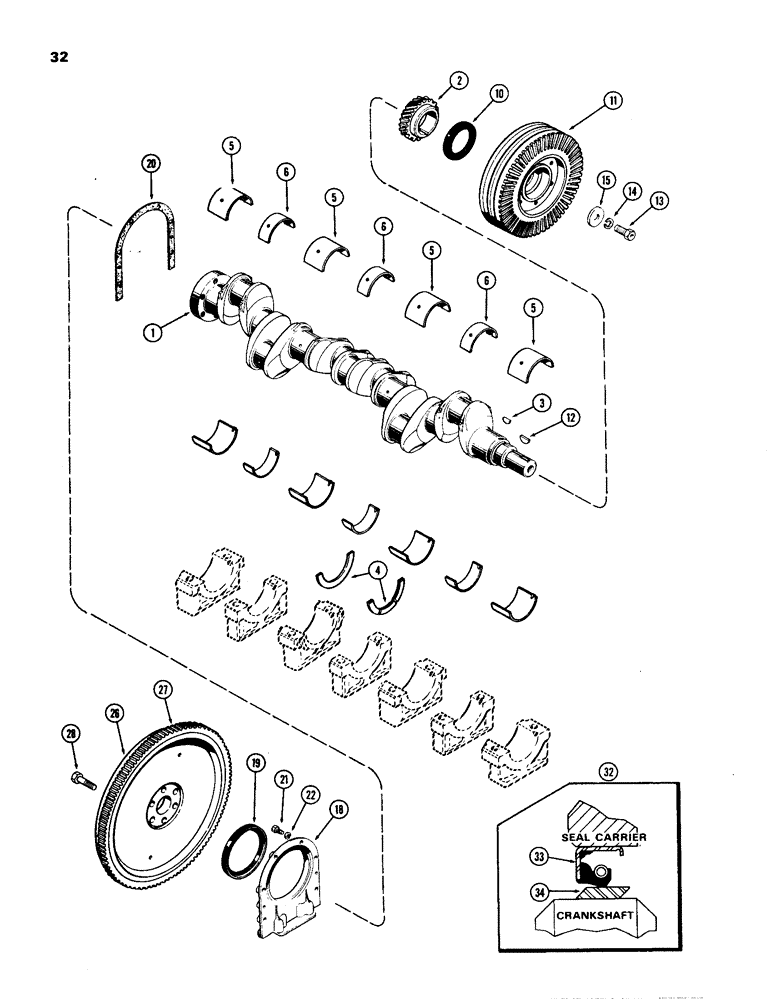

Запчасти Case W24B (032) - CRANKSHAFT AND FLYWHEEL, (504BD) AND (504BDT) DIESEL ENGINES (02) - ENGINE

1

A136106

CRANKSHAFT

ASSY, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (Standard) 0.185 "

2шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust (Oversize) 0.191 "

2шт.

5

A43163

BEARING LINER

LINER SET - main bearing, wide, standard (Set of 2)

4шт.

5

A43164

BEARING LINER

LINER SET - main bearing, wide, -.002" (Set of 2)

4шт.

5

A43165

BEARING LINER

LINER SET - main bearing, wide, -.010" (Set of 2)

4шт.

5

A43166

BEARING LINER

LINER SET - main bearing, wide, -.020" (Set of 2)

4шт.

5

A43167

BEARING LINER

LINER SET - main bearing, wide, -.030" (Set of 2)

4шт.

6

A43158

BEARING LINER

LINER SET - main bearing, narrow, standard (Set of 2)

3шт.

6

A43159

BEARING LINER

LINER SET - main bearing, narrow, -.002" (Set of 2)

3шт.

6

A43160

BEARING LINER

LINER SET - main bearing, narrow, -.010" (Set of 2)

3шт.

6

A43161

BEARING SET

LINER SET - main bearing, narrow, -.020" (Set of 2)

3шт.

6

A46162

GASKET

LINER SET - main bearing, narrow, -.030" (Set of 2)

3шт.

10

A62049

OIL SEAL

- oil, front, 2-5/8 x 3-5/8 x 1/2"

1шт.

11

A65125

PULLEY

- fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A27903

WASHER

- pulley (5/8 x 2-1/8 x 1/4")

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 32)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

26

A65049

FLYWHEEL

ASSY, Includes: Ref. 27

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel (5/8 NF x 1-1/2") (Grade 8)

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, 4-7/8 x 5-3/4 x 1/2", wear kit

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear, 4-3/4 x 4-7/8 x 9/16", seal kit

1шт.
