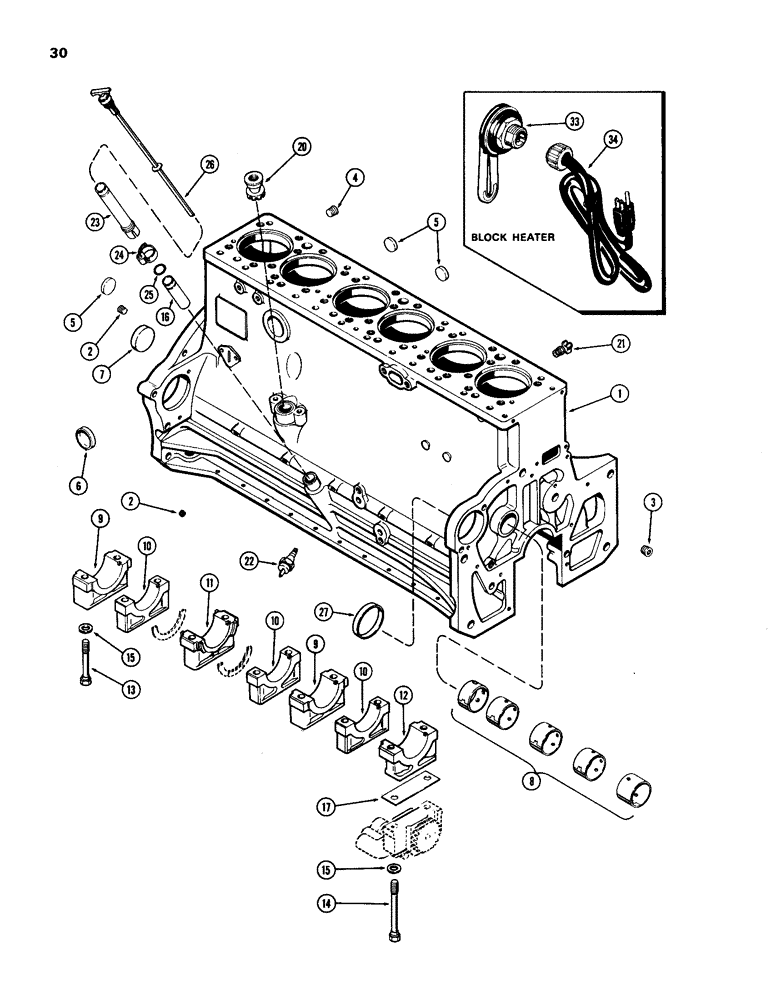

Запчасти Case W24B (030) - CYLINDER BLOCK, (504BD) AND (504BDT) DIESEL ENGINES (02) - ENGINE

A152986

CRANKCASE

BLOCK ASSY - short (Includes stripped block, camshaft, crank- shaft & bearings, piston assy, connecting rods & bearings & timing gears) replaced A46001 )

1шт.

A46001 subs to A152986. The tach drive on the A152986 would be A34266.

1шт.

1

A46002

CRANKCASE

BLOCK ASSY - stripped (Casting No. A66526)

1шт.

1

AR77835

REMAN-BASIC ENGINE

Remanufactured, Engine Basic - replacement for engines with block casting number of A66526

1шт.

1

AC77835

CORE-BASIC ENGINE

Return Number, Engine Basic - replacement for engines with block casting number of A66526

1шт.

2

221-1849

PLUG

PLUG - oil passage (1/8" PT socket head)

5шт.

3

221-1843

PLUG

PLUG - oil passage (3/8" PT socket head)

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

PLUG - water passage (3/4" PT socket head)

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - water passage, 1-3/8" cup type

3шт.

6

A58569

PLUG,Cup, 2", Stainless

PLUG - heater hole, 2" cup type

1шт.

7

A24361

PLUG

PLUG - camshaft hole, 2-3/8" cup type

1шт.

8

A23544

BUSHING

BUSHING SET - camshaft

1шт.

9

A58783

BEARING CAP

CAP - main bearing, wide (rear & intermediate)

2шт.

10

A58784

BEARING CAP

CAP - main bearing, narrow (intermediate)

3шт.

11

A58785

BEARING CAP

CAP - main bearing, wide (thrust)

1шт.

12

A58782

CAP

CAP - main bearing, wide (front)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps (5/8 NC x 5")

12шт.

14

A66949

STEP BOLT

BOLT - front bearing cap (5/8 NC x 7-1/4")

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts (5/8 x 1 x 1/8")

14шт.

16

A34540

TUBE

TUBE - oil filler & dipstick

1шт.

17

A58859

SHIM,.005" Thk

SHIM, , Oil pump .005" Thk

1шт.

20

A34266

DRIVE

DRIVE ASSY - tachometer

1шт.

21

A23656

COCK, DRAIN

DRAIN - water

1шт.

22

A66737

SWITCH, PRESSURE

PRESSURE SWITCH UNIT - sending, engine oil pressure (in front oil gallery hole)

1шт.

23

A65778

TUBE

TUBE - extension, dipstick & oil filler

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube, 1-3/16 to 1-3/4"

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - tube, 1-1/8 x 1-3/8 x 1/8"

1шт.

26

A67028

DIPSTICK

DIPSTICK ASSY - oil level

1шт.

27

41-1052

PLUG,Cup, 3 1/4"

PLUG - auxiliary pump opening, 3-1/4" cup type

1шт.

32

A44812

HEATER

HEATER ASSY block

1шт.

33

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - heater element, 1-3/4 x 2 x 1/8" block

1шт.

34

A44813

CABLE EXTENSION

CORD ASSY - 12" long, block heater

1шт.
