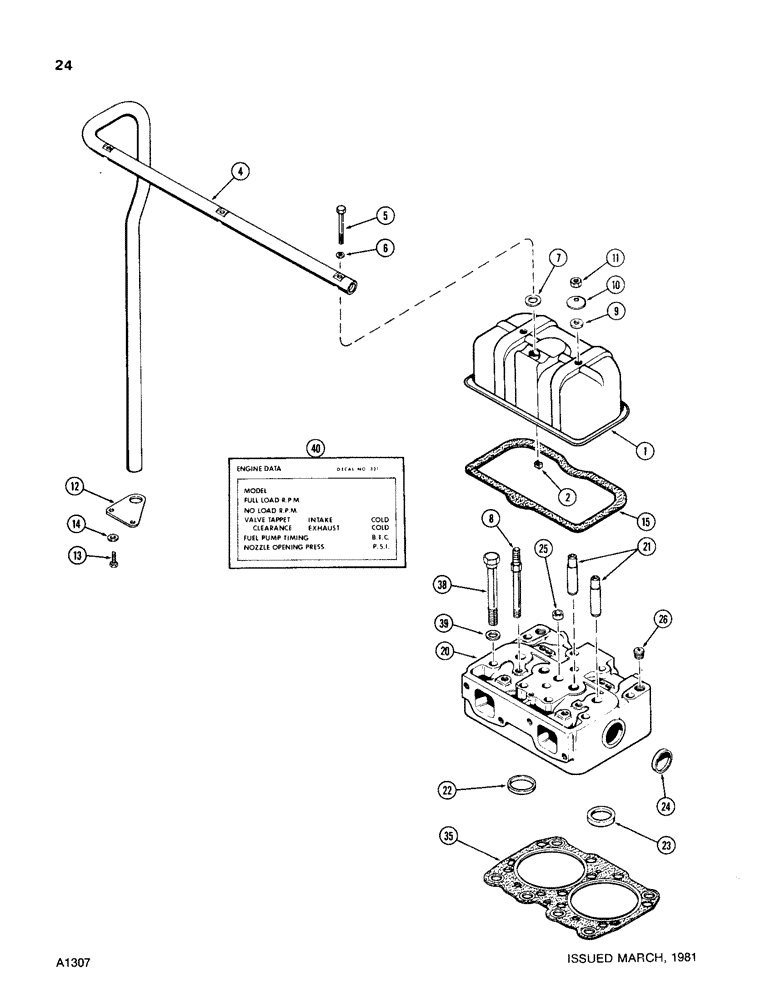

Запчасти Case W24B (024) - CYLINDER HEAD AND COVER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" NC Speed-Grip)

1шт.

4

A59053

TUBE

TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, , Breather tube Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

GASKET - breather tube, upper (fiber)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - breather tube, lower

3шт.

8

A67121

STUD

STUD - rocker arm bracket and cover, 7/16 NC x 6"

6шт.

9

A23684

GASKET

GASKET - cover stud, (rubber)

6шт.

10

A23683

WASHER

WASHER - cover stud

6шт.

11

25-117

NUT,7/16"-20, G5

NUT - cover stud (7/16" NF hex)

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket to oil pan (3/8 x 1-1/2" NC hex with external shakeproof washer)

2шт.

14

195-25

WASHER,3/8"

SPACER - bracket bolt, 3/8 x 13/16 x 1/16"

1шт.

15

A65734

CYLINDER HEAD GASKET

GASKET -, Serial Range: cover-head

3шт.

20

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 21 - 25

3шт.

20

AR66686

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

20

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDE - intake and exhaust valve

4шт.

22

A66192

INSERT

INSERT - exhaust valve seat

2шт.

23

A60557

INSERT

INSERT - intake valve seat

2шт.

24

A34121

PLUG - 1-5/8" (40.4 mm) cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

26

221-1843

PLUG

PLUG - cylinder head (3/8" PT, socket head)

6шт.

35

REF

INSTRUCTION

GASKET - cylinder head (See Page 41)

3шт.

38

A76638

BOLT

BOLT - cylinder head, 5/8 x 6-1/4" NC hex

30шт.

For units S/N 2556252 and after

1шт.

38a

A62732

STEP BOLT

For units prior to S/N 2556252

1шт.

39

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

40

321-2306

SPARE PART DECAL - engine information (504BD Natural Aspirated)

1шт.

40

321-2326

SPARE PART DECAL - engine information (504BDT Altitude Compensating)

1шт.
