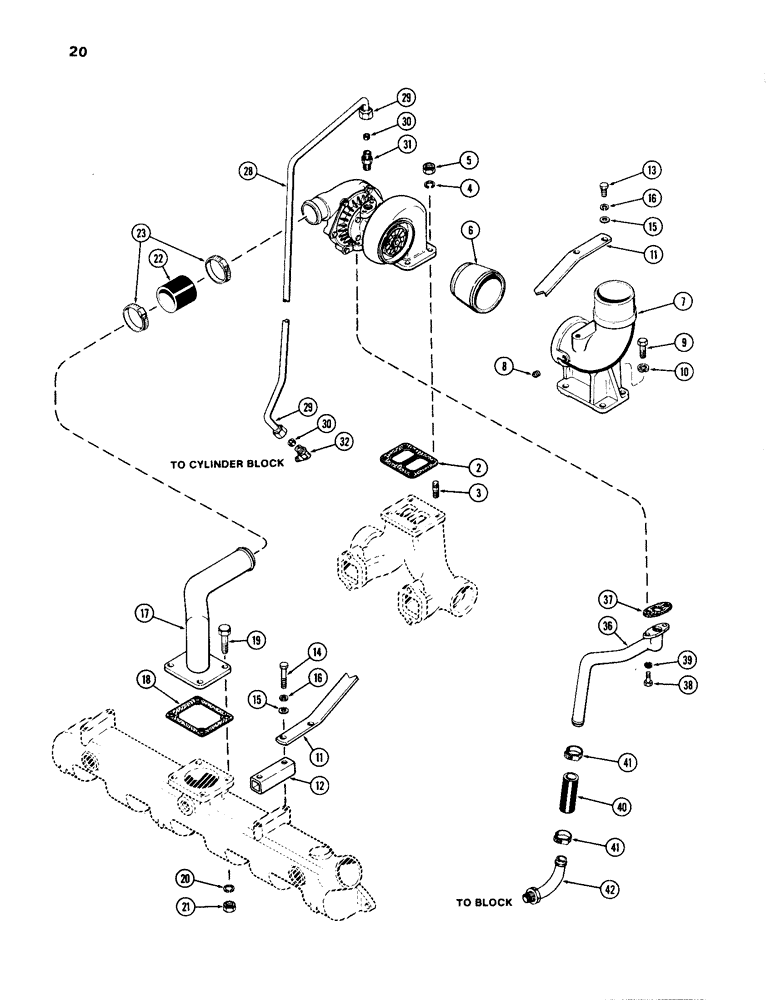

Запчасти Case W24B (020) - TURBO-CHARGER SYSTEM, (504BDT) ALTITUDE COMPENSATNG ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER ASSY - (Rebuilt)

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger Assy (Do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used turbo-charger to be returned for credit)

1шт.

2

A58899

GASKET,0.45mm Thk

GASKET -, Serial Range: turbo-charger-manifold

1шт.

3

G11204

STUD

STUD - turbo to manifold, 3/8" NC x 1-7/16"

4шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-pruf

4шт.

6

A65554

TUBE

CONNECTOR - exhaust, Serial Range: elbow-turbo

1шт.

7

A61941

ELBOW

ELBOW - exhaust

1шт.

8

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - elbow (1/4" PT, square head)

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Elbow Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

11

A61944

BRACE

BRACE - exhaust elbow to intake manifold

1шт.

12

A67057

SPACER

SPACER - brace

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - brace to spacer (3/8 x 2-1/2" NC hex) (Grade 5)

2шт.

15

95-6

WASHER,3/8"

WASHER - 3/8 x 1 x 1/16"

4шт.

16

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

17

A150450

ELBOW

ELBOW - turbo to intake manifold (Replaces A77242)

1шт.

18

A58910

GASKET

GASKET - elbow

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - elbow to manifold (3/8 x 1-1/2" NC hex) (Grade 5)

4шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

4шт.

22

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow to turbo (Replaces A58894)

1шт.

23

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

28

A62478

TUBE

TUBE ASSY - oil supply, Includes: Ref. 29 and 30

1шт.

29

222-114

NUT,5/8"-24

NUT - for 3/8" tube

2шт.

30

222-154

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

2шт.

31

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - tube (to turbo-charger)

1шт.

32

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - tube (to cylinder block)

1шт.

36

A62518

TUBE

TUBE - oil drain

1шт.

37

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Tube to turbo Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

39

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

40

A58893

HOSE

HOSE - drain tube, 1/4" ID x 3-1/2"

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

42

A58897

FITTING

FITTING -, Serial Range: hose-block

1шт.
