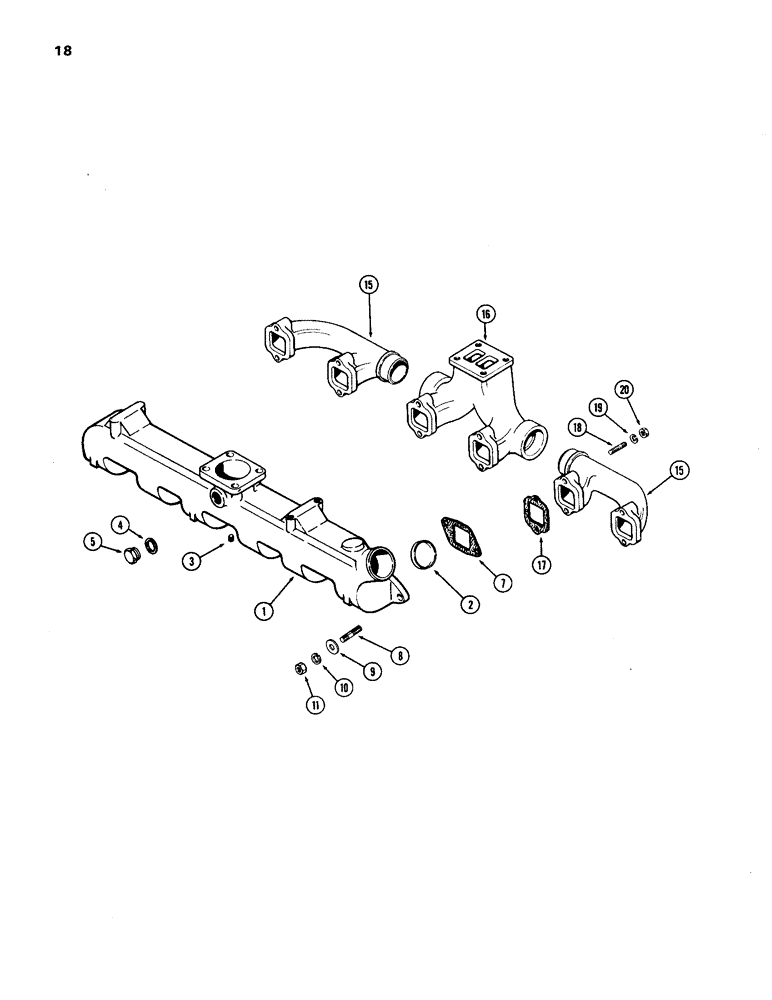

Запчасти Case W24B (018) - MANIFOLDS, (504BDT) ALTITUDE COMPENSATING ENGINE, INTAKE (02) - ENGINE

1

A66087

MANIFOLD

ASSY - intake (Replaces A62845), Includes: Ref. 2 - 5

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-7/8" cup type

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

5

221-41

PLUG

- 1/8" PT, slotted head

1шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold, 3/8" NC x 1-3/4"

12шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

12шт.

15

A65917

MANIFOLD

- exhaust, ends

2шт.

16

A76322

MANIFOLD

- exhaust, center

1шт.

17

A58895

GASKET

- exhaust manifold (metal faced)

6шт.

18

A140924

STUD

- exhaust manifold, 3/8" NC x 2-7/16" (Replaces A35175)

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf, exhaust

12шт.
