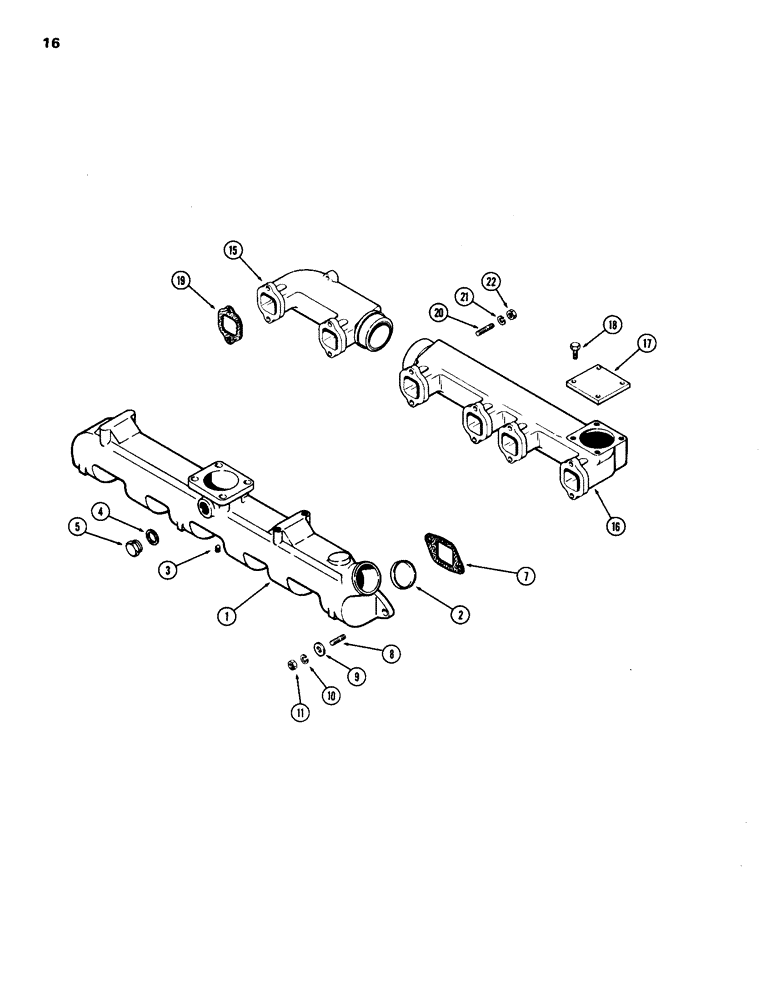

Запчасти Case W24B (016) - MANIFOLDS, (504BD) NATURALLY ASPIRATED ENGINE, INTAKE (02) - ENGINE

1

A66087

MANIFOLD

ASSY - intake (Replaces A62845), Includes: Ref. 2 - 5

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup type

1шт.

3

L10283

PLUG

- heater hole

1шт.

4

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

5

221-41

PLUG

- 1/8" PT, slotted head

1шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold, 3/8" NC x 1-3/4"

12шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

12шт.

10

92-6

LOCK WASHER,3/8"

12шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

12шт.

15

A58664

MANIFOLD

- exhaust, rear

1шт.

16

A65272

MANIFOLD

ASSY - exhaust, front (Replaces A58663) (Remove cup plug prior to assembly to rear exhaust), Includes: Ref. 17 and 18

1шт.

17

A58665

COVER

- front exhaust maniflod

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover to manifold, exhaust Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

19

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

6шт.

20

A59077

STUD

- exhaust manifold (3/8" NC x 1-3/4")

12шт.

21

92-6

LOCK WASHER,3/8"

exhaust 3/8"

12шт.

22

131-913

FLANGE NUT,Flg, USR, 1/2"-20

- 3/8" NC hex, Seez-Pruf, exhaust

12шт.
