Запчасти Case W24B (296) - DECALS (09) - CHASSIS

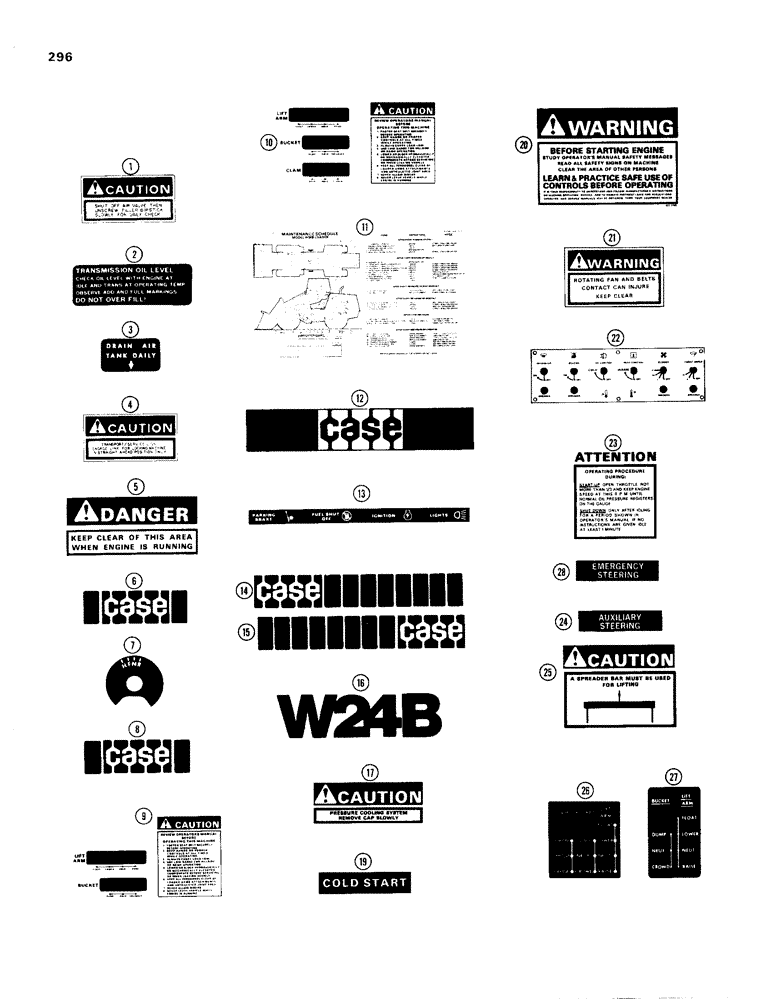

Схема запчастей Case W24B - (296) - DECALS (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

321-3207

DECAL

- hydraulic tank, daily check

1шт.

2

321-1980

DECAL

- transmission oil level

1шт.

3

321-1077

DECAL

- air drain, lower RH front and rear frame

2шт.

4

321-3206

DECAL

- caution, transport/service

1шт.

5

321-3205

DECAL

- danger

1шт.

6

321-2428

DECAL

- "Case" rear

1шт.

7

321-1047

DECAL

- transmission control

1шт.

8

321-3126

DECAL

- "Case" front

1шт.

9

321-4139

DECAL

- loader control, 2 spool, cab model

1шт.

10

321-4138

DECAL

- loader control, 3 spool, cab model

1шт.

11

321-3702

INSTRUCTION

DECAL - maintenance chart

1шт.

12

L57685

DECAL

- "Case" instrument cluster

1шт.

13

321-2613

DECAL

- instrument cluster, use 321-4736

1шт.

13a

321-4736

DECAL

- instrument cluster, not shown

1шт.

14

321-3129

DECAL

- hood, RH

1шт.

15

321-3072

DECAL

- hood, LH

1шт.

16

321-3070

DECAL

- "W24B", cab

2шт.

16

321-3166

DECAL

- W24B - ROPS canopy

2шт.

17

321-3061

DECAL

- caution, pressure cap

1шт.

19

321-4480

DECAL - cold start

1шт.

20

321-3705

DECAL

- warning, before operation of machine

1шт.

21

321-3596

DECAL

- warning, fan

2шт.

22

321-4137

DECAL

- switches, cab

1шт.

23

321-1981

DECAL

- turbocharger protection

1шт.

24

321-4479

DECAL

- auxiliary steering

1шт.

25

321-3574

DECAL

- tie down and lift instructions

1шт.

26

321-1663

DECAL

- loader control, 3 spool canopy model

1шт.

27

321-1075

DECAL

- loader control, 2 spool canopy model

1шт.

28

REF

INSTRUCTION

DECAL - Emergency steering, use 321-4347

1шт.

L36163

DECAL

KIT - decal

1шт.

Выбрано товаров: 30
