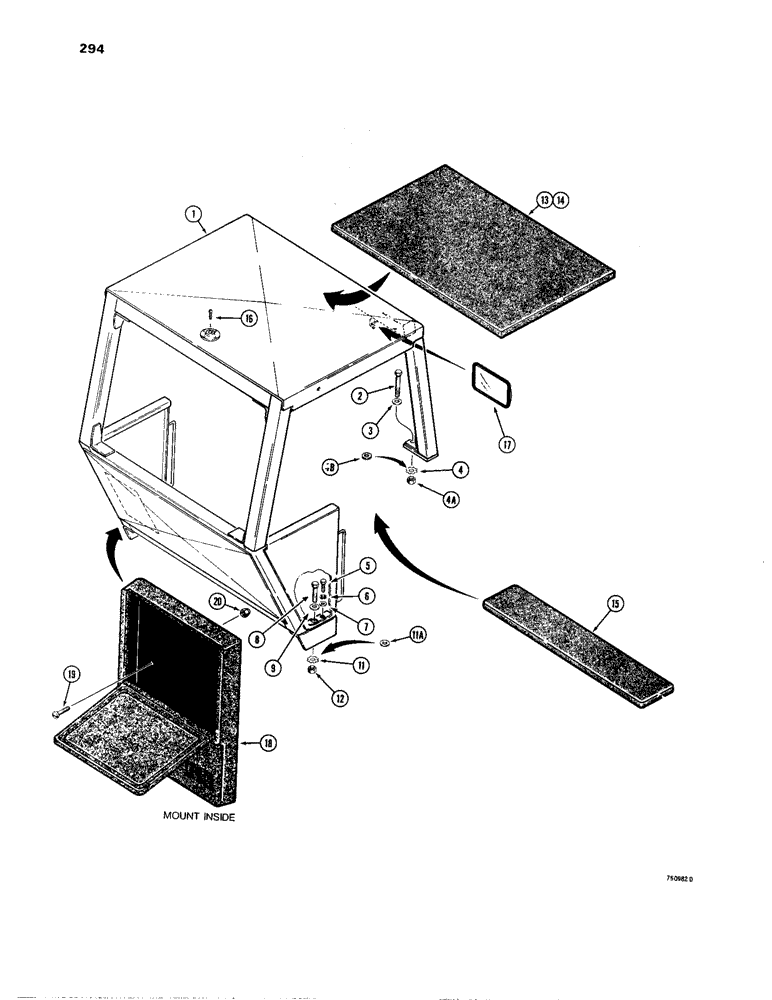

Запчасти Case W24B (294) - ROPS CANOPY (09) - CHASSIS

1

MACHITEM

CANOPY - ROPS, see Fig. 002 for ordering

1шт.

2

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

HHCS - 3/4" - 10 NC x 3-1/2", grade 8

2шт.

3

L52734

WASHER

- flat, 3/4"

2шт.

4

L74506

WASHER

- hardened, if used

2шт.

4a

131-657

LOCK NUT,3/4"-10, GB

NUT - hex self lock, 3/4" - 10 NC

2шт.

4b

L79179

WASHER

- hardened, if used

2шт.

5

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

HHCS - 1/2" - 13 NC x 1-3/4", grade 8

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

95-8

WASHER,1/2"

flat 1/2"

2шт.

8

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2", grade 8

2шт.

9

L52734

WASHER

- flat, 3/4", if used

2шт.

11

L74506

WASHER

- hardened, if used

2шт.

11a

L79179

WASHER

- hardened, if used

2шт.

12

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, 3/4" - 10 NC

2шт.

13

L79213

ROOF LINING

HEADLINER - canopy

1шт.

14

345-57

ADHESIVE

- headliner, if required

1шт.

15

L73771

PAD

- non skid

1шт.

16

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head, 1" NPT

1шт.

17

L74714

MIRROR

AND HARDWARE - rear view

1шт.

18

A141933

BOX

- manual

1шт.

19

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- machine slotted, 1/4" - 20 NC x 1/2"

3шт.

20

129-501

NUT,Crown, 1/4"-20

- domed, 1/4" - 20 NC

3шт.
