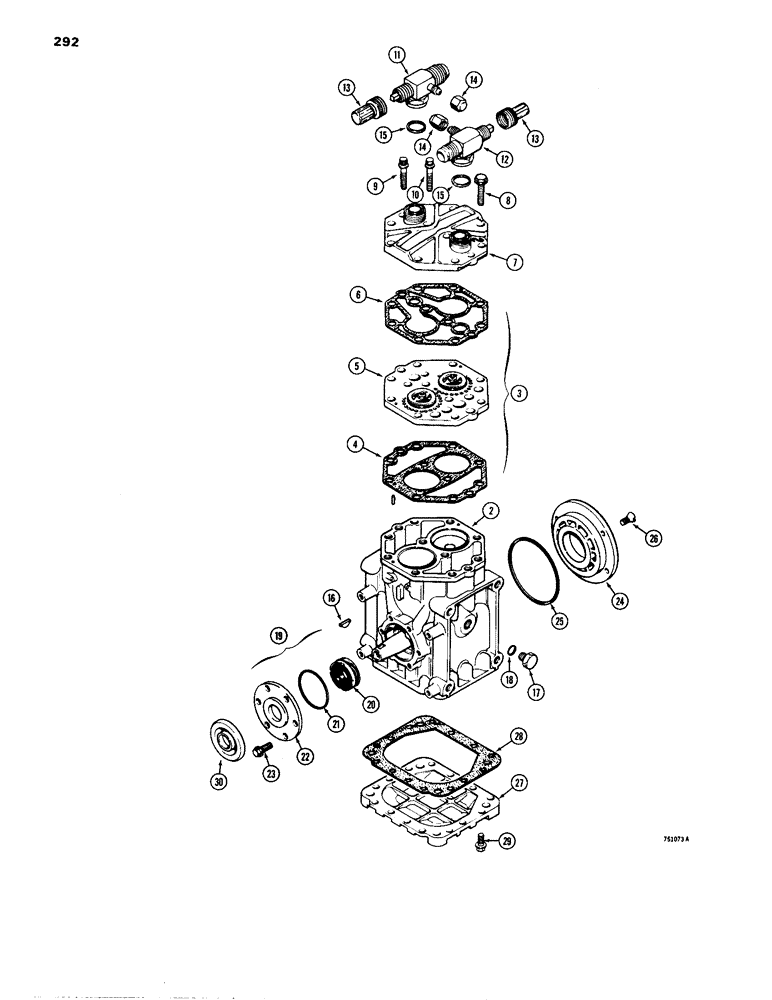

Запчасти Case W24B (292) - AIR CONDITIONING COMPRESSOR (09) - CHASSIS

A141060

COMPRESSOR

COMPRESSOR ASSEMBLY - York #ER201L-20186, Includes: Ref. 2 - 22

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, SHAFT AND PISTON ASSEMBLY

1шт.

3

A45420

VALVE

KIT - valve plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve, Serial Range: plate-crankcase

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - hex flange head, 5/16" - 18 NC x 1-3/8"

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16" x 1-3/8" NC, ferry head, 12 pt cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - 5/16" x 1-17/32" NC, ferry head, 12 pt cap

2шт.

11

A42936

VALVE

VALVE ASSEMBLY - roto-lock, discharge

1шт.

12

A42937

VALVE

VALVE ASSEMBLY - roto-lock, suction, Includes: Ref. 13 and 14

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET - roto-lock to cylinder head

2шт.

16

A42939

KEY

KEY - crankshaft, #6 non-rok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

PLUG - crankcase, filler and level

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of Gasket Overhaul Kit P/N A42964

1шт.

19

A42960

SEAL

KIT - seal, front crankshaft, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Gasket Overhaul Kit P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - hex flange head, 1/4" - 20 NC x 11/16", Includes: Ref. 24 - 29

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - rear housing

1шт.

Part of Gasket Overhaul Kit P/N A42964

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

27

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - base plate

1шт.

Part of Gasket Overhaul Kit P/N A42964

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

30

A42935

PLATE

CAP - dust, crankshaft oil seal

1шт.

A42964

GASKET

KIT - gasket, complete overhaul, Includes: Ref. 18, 21, 25 and 28

1шт.
