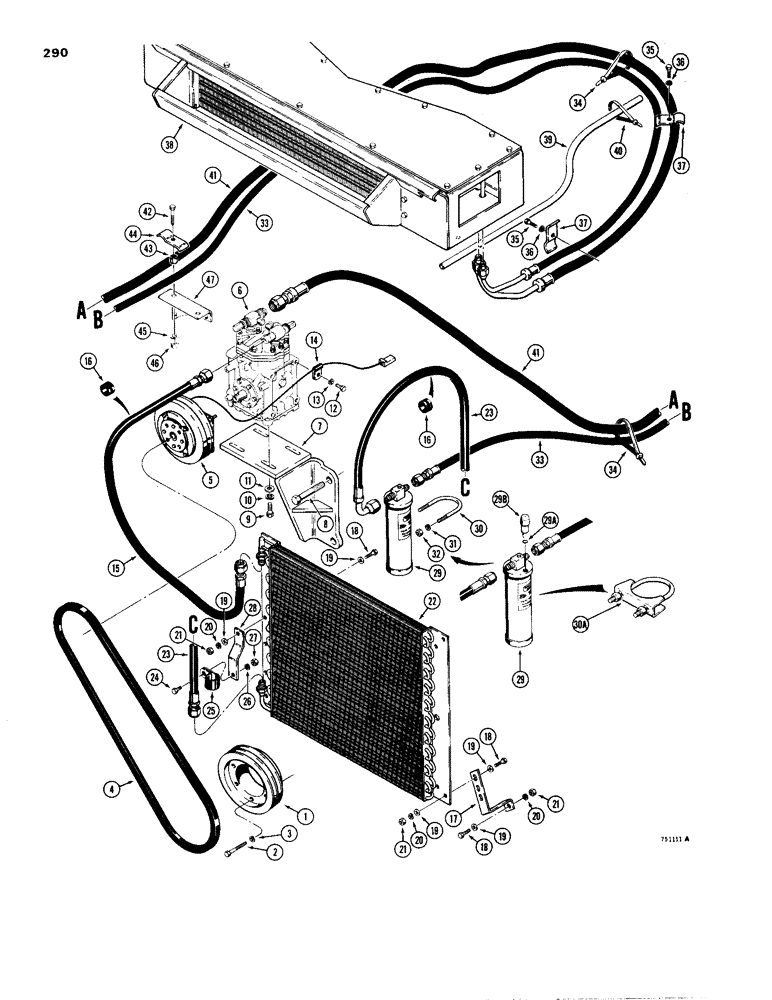

Запчасти Case W24B (290) - AIR CONDITIONING CIRCUIT (09) - CHASSIS

1

T39994

PULLEY

- compressor drive, at engine crankshaft

1шт.

2

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

HHCS - 3/8" - 16 NC x 2-1/4"

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

L58838

V-BELT,0.50" W x 56.75" L

Compressor 0.50" W x 56.75" L

1шт.

5

L70226

CLUTCH

- compressor, parts list Fig. 114

1шт.

6

A141060

COMPRESSOR

- air conditioning, parts list Fig. 292

1шт.

7

L73877

SUPPORT - compressor

1шт.

8

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

12

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D43839

CLAMP

- wire

1шт.

15

L59486

A/C HOSE,0.41" ID x 25.00", SAE J51 Type A

HOSE - Compressor to condenser 0.41" ID x 25.00", SAE J51 Type A

1шт.

16

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- hose

2шт.

17

L70879

BRACKET

- condenser mounting

4шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

19

195-26

WASHER

WASHER - flat, 3/8"

12шт.

20

92-6

LOCK WASHER,3/8"

8шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

22

L59400

CONDENSER

- air conditioning

1шт.

23

L59487

HOSE

-, Serial Range: condenser-dryer

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

25

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

28

L70335

BRACKET

- support

1шт.

29

L70154

CLEANER ASSY.

DRYER - without relief valve, use L77169, A30825 and L77168

1шт.

29

L77169

CLEANER ASSY.

DRYER - receiver

1шт.

29a

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

29b

L77168

LOCK VALVE

VALVE - relief

1шт.

30

L58772

U-BOLT

CLAMP - U-bolt

1шт.

30a

L72884

CLAMP

ASSEMBLY - includes hardware

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

25-104

NUT,1/4"-20, G5

2шт.

33

L59937

HOSE

- high pressure

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose

3шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

L79797

CLAMP

- hose

2шт.

38

REF

INSTRUCTION

PLENUM - air conditioning, see Fig. 286

1шт.

39

L71740

TUBE,0.5" ID x 29" L

- condensation drain

2шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

2шт.

41

L59938

HOSE

- low pressure

1шт.

42

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

43

33126

BUSHING

SPACER - clamp

1шт.

44

L79797

CLAMP

- hose

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

47

L73911

BRACKET

1шт.
