Запчасти Case W24B (288) - HEATER LINES (09) - CHASSIS

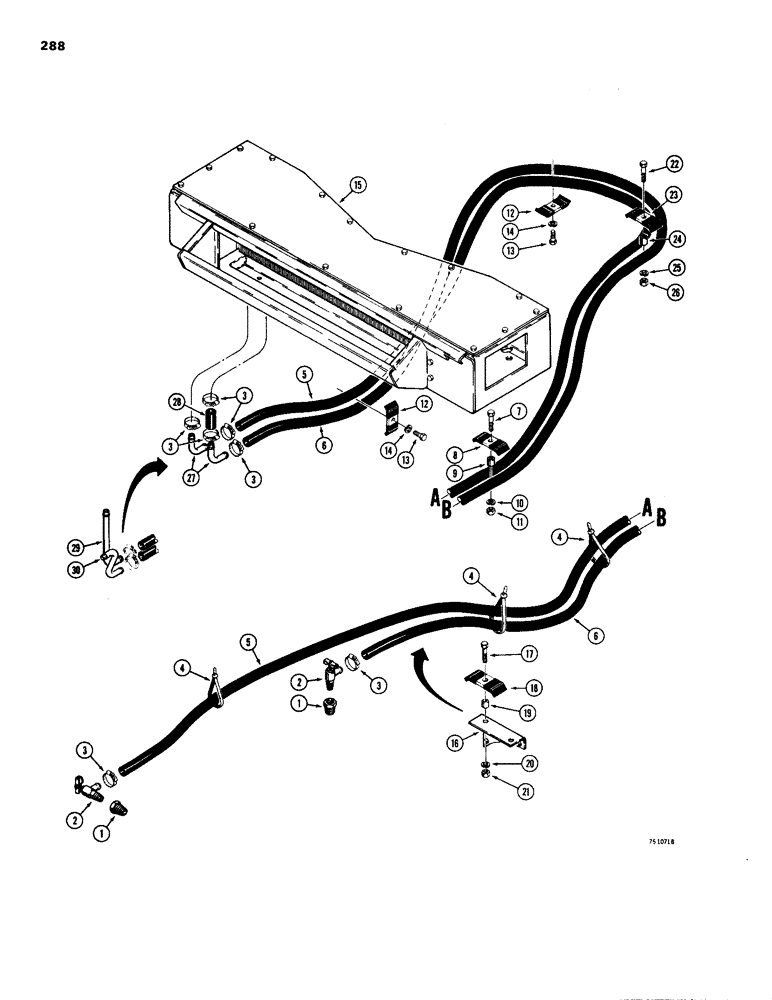

Схема запчастей Case W24B - (288) - HEATER LINES (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

2шт.

2

A16764

VALVE

- shutoff

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw (replaced 124-253)

6-7шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose

1шт.

5

A19943

HOSE

- 5/8" ID x 158" (16 mm x 4013 mm) use A42610

1шт.

6

L18327

HOSE,0.63" ID x 108.00", SAE 20R3

- 5/8" ID x 123" (16 mm x 3124 mm) use A42610

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

If used Hex, 3/8"-16 x 2", G5

2шт.

8

D40236

CLAMP

- hose, if used

2шт.

9

33126

BUSHING

SPACER - clamp, if used

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

D40236

CLAMP

- hose

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

REF

INSTRUCTION

PLENUM - see page 285

1шт.

16

L73911

BRACKET

- hose support

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

D40236

CLAMP

- hose

1шт.

19

33126

BUSHING

SPACER - clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 5/8" - 16 NC x 2"

1шт.

23

D40236

CLAMP

- hose

1шт.

24

33126

BUSHING

SPACER

1шт.

25

12034871

WASHER

WASHER, LOCK, (5/8") M16

1шт.

26

25-106

NUT,3/8"-16, G5

- hex, 5/8" - 16 NC

1шт.

27

A60823

ELBOW

- 90 degrees, before tractor sn 9126838

1шт.

28

F43183

HEATER HOSE

HOSE - heater, 5/8" ID x 2" (16 mm x 51 mm), before tractor sn 9126838

1шт.

29

L74324

TUBE,0.625" OD x 7.3, 2.5" L

- inlet, tractor sn 9126838 and after

1шт.

30

L74325

TUBE,0.625" OD x 5.25, 5" L

- outlet, tractor sn 9126838 and after

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, 5/8" (16 mm) ID x 50' (15.2 m), tractor sn 9126838 and after

1шт.

Выбрано товаров: 31
