Запчасти Case W24B (287A) - HEATER AND AIR CONDITIONING PLENUMS & RELATED PARTS, USED TRACTOR SERIAL NO. 9126838 AND AFTER (09) - CHASSIS

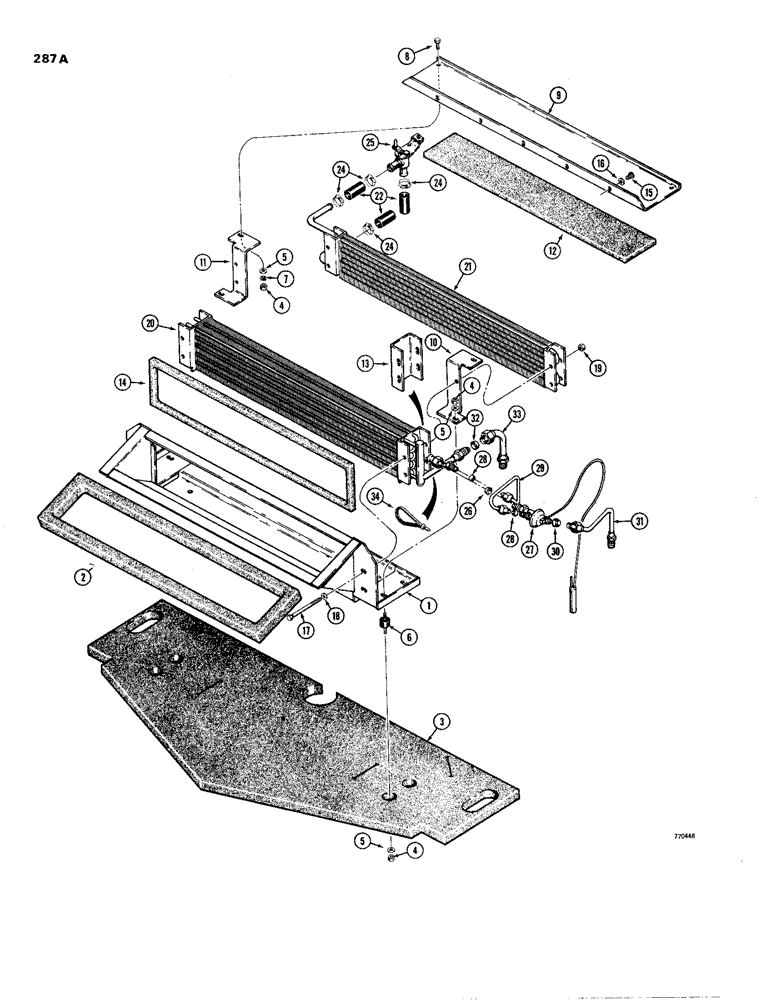

Схема запчастей Case W24B - (287A) - HEATER AND AIR CONDITIONING PLENUMS & RELATED PARTS, USED TRACTOR SERIAL NO. 9126838 AND AFTER (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

L74336

PLATE

PLENUM - heater and air conditioning

1шт.

2

L74265

SEAL

- plenum

1шт.

3

L74335

SEAL

- floor

1шт.

4

25-104

NUT,1/4"-20, G5

10шт.

5

95-4

WASHER,1/4"

- flat, 1/4"

10шт.

6

F43229

MOUNTING PARTS

CUSHION - rubber

4шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

9

L74224

COVER

- plenum

1шт.

10

L76407

BRACKET

- RH

1шт.

11

L76408

BRACKET

- LH

1шт.

12

L74250

SEAL

- top

1шт.

13

L74228

BRACKET

SPACER

2шт.

14

L74249

SEAL

SEAL - rear

1шт.

15

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self tapping, #10 - 24 NC x 1/2"

5шт.

16

195-13

WASHER,#10

- flat, #10

5шт.

17

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 1/4" - 20 NC x 3-3/4", if used

4шт.

17

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

HHCS - 1/4" - 20 NC x 5", if used

4шт.

18

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

19

131-2

NUT,1/4"-20, GB

NUT - hex self lock, 1/4" - 20 NC

4шт.

20

F63646

EVAPORATOR

- evaporator

1шт.

21

L77526

CORE

- heater

1шт.

22

F43183

HEATER HOSE

HOSE - 5/8" (16 mm) ID x 2" (51 mm)

3шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw

4шт.

25

F63865

VALVE

- heater

1шт.

26

222-994

GASKET,1/2 Tube, Fl, Copper

- 1/2" (13 mm)

1шт.

27

F63726

VALVE

- expansion

1шт.

28

222-991

GASKET,1/4 Tube, Fl, Copper

- 1/4" (6 mm)

2шт.

29

F43391

TUBE,0.25" OD

1шт.

30

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

1шт.

31

F43389

TUBE,0.375" OD

1шт.

32

222-995

SEALING WASHER,15.88mm ID

- 5/8" (16 mm)

1шт.

33

F43390

TUBE,0.625" OD x 2.1, 3.92" L

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

1шт.

Выбрано товаров: 34
