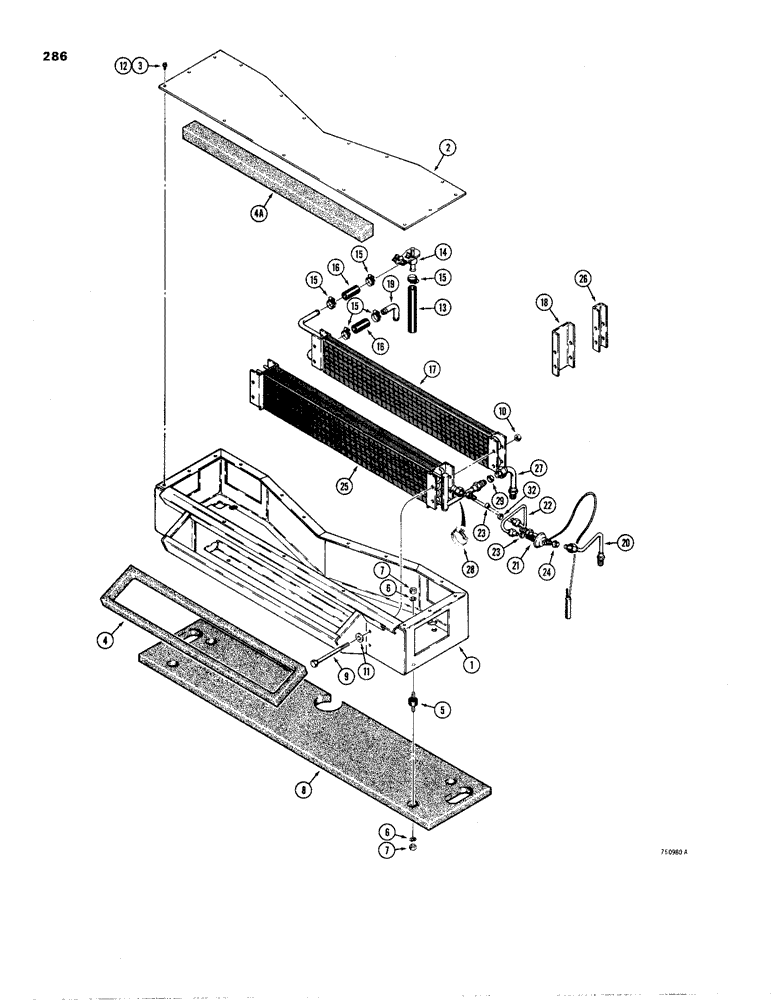

Запчасти Case W24B (286) - HEATER AND AIR CONDITIONING PLENUMS & RELATED PARTS, USED BEFORE TRACTOR SERIAL NO .9126838 (09) - CHASSIS

L71526

AIR TUBE

PLENUM ASSEMBLY - heater and air conditioning, Includes: Ref. 1 - 4A

1шт.

1

F93690

AIR TUBE

PLENUM

1шт.

2

F93689

COVER

- plenum

1шт.

3

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 - 24 NC x 1/2"

2шт.

4

REF

INSTRUCTION

SEAL - 71" (1803 mm) long, cut from D70610 bulk

1шт.

4a

REF

INSTRUCTION

SEAL - 29-1/2" long (749 mm) cut from D71366 bulk

1шт.

5

F43229

MOUNTING PARTS

MOUNT - rubber

4шт.

6

95-4

WASHER,1/4"

- lock, 1/4"

8шт.

7

25-104

NUT,1/4"-20, G5

- hex, 1-1/4" - 20 NC

8шт.

8

F43529

SEAL - floor

1шт.

9

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

HHCS - 1/2" - 20 NC x 5"

4шт.

10

131-2

NUT,1/4"-20, GB

NUT - hex self lock, 1/4" - 20 NC

4шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

12

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 - 24 NC x 1/2"

13шт.

13

A42610

LARGE HOSE

HOSE - heater inlet, 5/8" (16 mm) ID x 6-1/8" (155 mm)

1шт.

14

F63865

VALVE

- heater temperature control

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw

5шт.

16

F43183

HEATER HOSE

HOSE - heater, 5/8" (16 mm) ID x 2" (51 mm)

2шт.

17

L77526

CORE

- heater

1шт.

18

L71645

FILLER

- heater core

2шт.

19

A60823

ELBOW

- 90 degrees

1шт.

20

F43389

TUBE,0.375" OD

- coolant

1шт.

21

F63726

VALVE

- thermal expansion

1шт.

22

F43391

TUBE,0.25" OD

- equalizer

1шт.

23

222-991

GASKET,1/4 Tube, Fl, Copper

- copper, 1/4" (6 mm) ( replaced 221-991 )

2шт.

24

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

2шт.

25

F63646

EVAPORATOR

- evaporator

1шт.

26

L71646

FILLER

FILTER - without heater core

2шт.

27

F43390

TUBE,0.625" OD x 2.1, 3.92" L

- gas

1шт.

28

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw

2шт.

29

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" (16 mm)

1шт.

30

D70610

GASKET

FOAM - bulk, 50' (15240 mm) roll, not shown

1шт.

31

D71366

FOAM

- bulk, 50' (15240 mm) roll, not shown

1шт.

32

222-994

GASKET,1/2 Tube, Fl, Copper

- copper flange, 1/2" (13 mm)

1шт.
