Запчасти Case W24B (280) - NOISE CONTROL PADS, USED BEFORE CAB SN 27750 (09) - CHASSIS

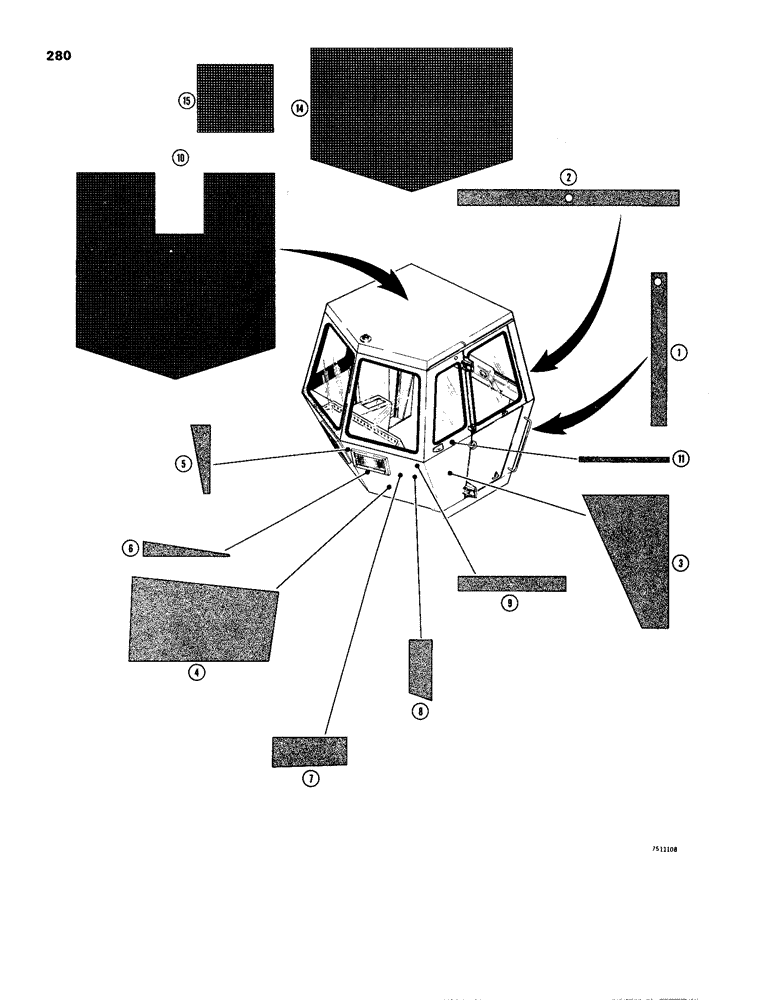

Схема запчастей Case W24B - (280) - NOISE CONTROL PADS, USED BEFORE CAB SN 27750 (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

D71521

FOAM

- cowl

2шт.

2

D71522

FOAM

- windshield

1шт.

3

D71526

FOAM

- side panel compartment

2шт.

4

D72726

FOAM

- rear lower panel

2шт.

5

D71531

FOAM

- lower panel, center

2шт.

6

D71532

FOAM

- lower rear, panel

2шт.

7

D71533

SEAL ASSY.

FOAM - end, lower rear panel

2шт.

8

D71534

FOAM

- side, lower rear panel

2шт.

9

D72725

FOAM

- top, lower rear panel

2шт.

10

D71508

HEADLINER - cab, use D76960 and (2) D76961 liners

2шт.

11

REF

INSTRUCTION

FOAM - 17" (432 mm) long at window hold back latch, cut from L36726 bulk.

4шт.

12

L35726

FOAM - bulk, 3/8" x 1" x 50" (10 mm x 25 mm x 15.2 meters), not shown.

1шт.

13

A55582

PAD

- non slip, door, not shown

2шт.

14

D76960

ROOF

HEADLINER

1шт.

15

D76961

ROOF

HEADLINER

2шт.

16

D83078

CAP

buttons, holds headliner to roof studs. (Located at the four corners of the roof)

1шт.

Выбрано товаров: 16
