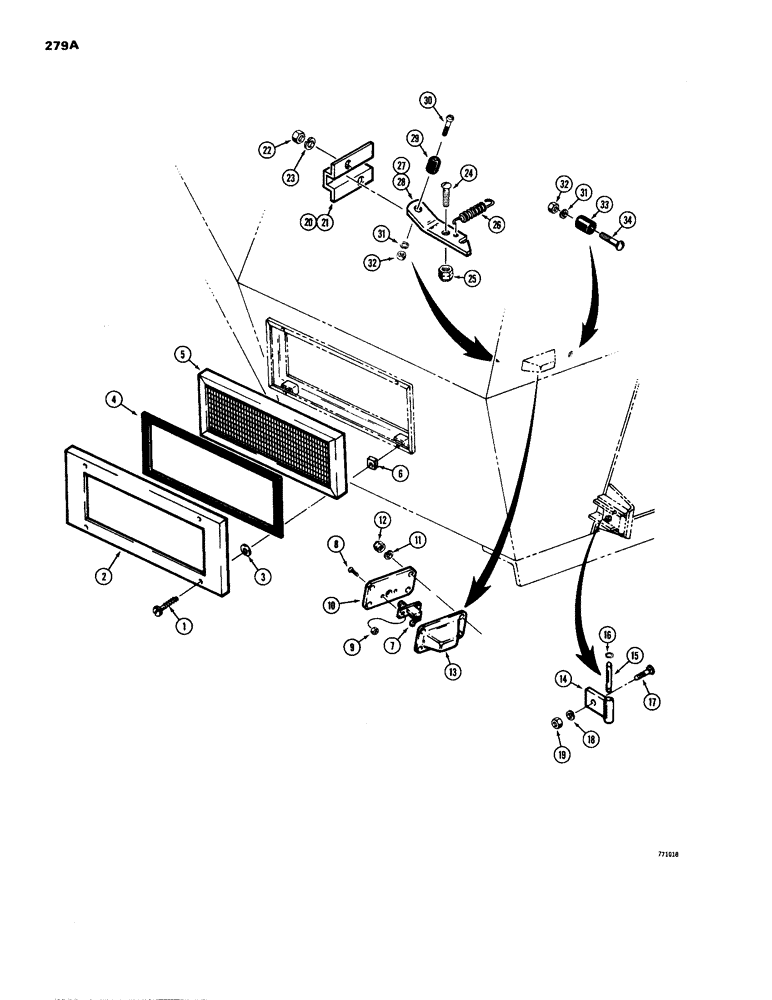

Запчасти Case W24B (279A) - CAB FILTER AND LATCHES (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
D72843
SCREW
- special, D71530 frame
6шт.
1
173-231
SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"
- round head, slotted, 5/16" - 18 NC x 1-1/2" D78394 frame ( replaced 77-524 )
8шт.
2
D71530
FUNNEL
FRAME - filter, before cab sn 27750
2шт.
2
D78394
COVER
FRAME - filter, cab sn 27750 and after
2шт.
3
A61045
RETAINER
WASHER
8шт.
4
F43190
SEAL
- D71530 frame
2шт.
4
D78395
SEAL
SEAL - D78394 frame
2шт.
5
D80562
AIR CLEANER
FILTER
2шт.
6
A61046
CLIP
RECEPTACLE - D72843 screw
6шт.
6
131-639
SPRING NUT,U, Rtnr, 5/16" - 18
- cage - 77-524 screw
8шт.
7
F43506
LATCH ASSY.
LATCH - holdback
2шт.
8
182-143
SCREW,Cross Pan Hd, #10 - 32 x 3/8"
- pan head, #10 - 32 NF x 3/8"
4шт.
9
129-37
NUT,#10-32
4шт.
10
D71513
PLATE
- latch
2шт.
11
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
8шт.
12
25-104
NUT,1/4"-20, G5
8шт.
13
F43505
COVER
- window latch
2шт.
14
D71528
HINGE
- doors, adjustable
4шт.
15
D72732
PIN
- hinge
8шт.
16
A27795
RING
- D72732 pin
16шт.
17
111-316
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5
4шт.
18
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
19
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
20
D76959
BRACKET
- RH
1шт.
21
D76958
BRACKET
- LH
1шт.
22
25-104
NUT,1/4"-20, G5
4шт.
23
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
24
111-316
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5
2шт.
25
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
26
L35748
SPRING
2шт.
27
D76956
LATCH
- LH
1шт.
28
D76957
LATCH
- RH
1шт.
29
L35871
FENDER
CUSHION - rubber
4шт.
30
182-147
SCREW,Sl Pan Hd, #10 - 32 x 3/4"
- round head, #10 - 32 NF x 3/4"
2шт.
31
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
32
129-37
NUT,#10-32
4шт.
33
D78393
CUSHION
- rubber
2шт.
34
182-151
SCREW,Sl Pan Hd, #10 - 32 x 1 1/4"
- round head, #10 - 32 NF x 1-1/4
2шт.
